Cable Branch Box,DFW8-12
EXDFW8-12
Quantity:
FUNCTIONS AND FEATURES
EXDFW8-12 series of cable branch box is outdoor design,fully sealed structure>and cabinet's protection class reaches IP33. The cable connector bracket adopts stainless steel,the shellis made of 2mm high-quality stainless steel plate,and the box is divided into bus room and cable tank by the cable tank roof.
The bus room is enclosed by 2mm steel plate.The cable connector bracket is located in the upper part of the bus room to support the casing,which is used to fix the cable connector,and the phase distance of cable connector is 180mm.n the case of the type with arrester,the arrester is installed at the rear of the cable connector. In addition,short-circuit indicator and charged display are also installed in the bus room.All the charged parts of the bus room are strictly insulated with silicone rubber. Cable tank is located in the lower pan of the bus room,which is the channel of cable,and there is fixing cable clamp and ground terminal in the tank.
The Technical Specifications of this Cable Branch Box define its electrical and mechanical parameters for outdoor medium-voltage distribution networks. The DFW8-12 Outdoor Cable Distribution Box features an outdoor design with a fully sealed structure and cabinet protection class reaching IP33, ensuring reliable operation in diverse environmental conditions. This 12kV Cable Tapping Box incorporates a cable connector bracket made of stainless steel, with the shell constructed from 2mm high-quality stainless steel plate. The Cable Branch Box is divided into a bus room and cable tank by the cable tank roof, providing organized cable management. The DFW8-12 Outdoor Cable Distribution Box features a bus room enclosed by 2mm steel plate, with the cable connector bracket located in the upper part to support the casing and fix the cable connector at a phase distance of 180mm. This 12kV Cable Tapping Box includes short-circuit indicators and charged display devices installed in the bus room. All charged parts of the Cable Branch Box are strictly insulated with silicone rubber. The DFW8-12 Outdoor Cable Distribution Box has a cable tank located in the lower part, serving as the cable channel with fixing cable clamps and ground terminals. Each Cable Branch Box is rated at 12kV and 630A, with thermal stability current of 20kA/3s.

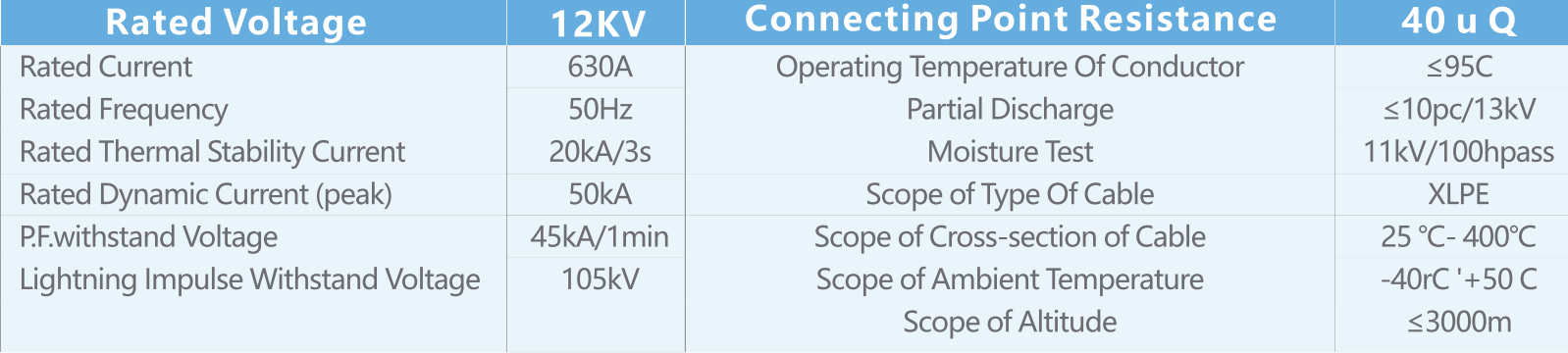

TECHNICAL SPECIFICATION

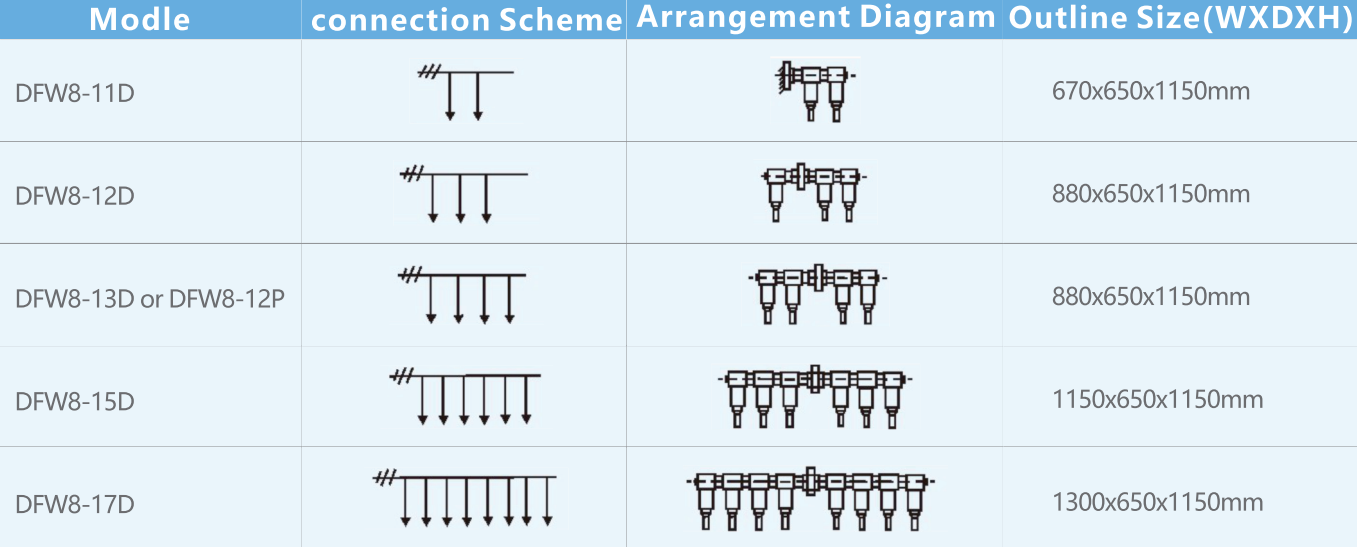

WIRING DIAGRAM
