F Class Dry Transformer

Cast Resin Dry Type Transformer, F CLASS

EXF CLASS
Quantity:
Contact Now
add to cart
PRODUCT DESCRIPTION
This transformer has good heat dissipation,and its coil does not absorb moisture.It does not pollute the environment,and can be installed in the loading center.
Low noise and low loss.It is energy-saving.economic and tree from maintenance.
It has high mechanical strength,strong insulation and good short-circuit withstand capacity.
It has good fire protection,anti-explosion and disaster-prevention performance.
Low loss,small tn size,light in weight,and easy to install.

EPOXY CAST RESINE F CLASS INSULATION 10KV DISTRIBUTION
TRANSFORMERS WITH OFF-CIRCUIT TAP CHANGER

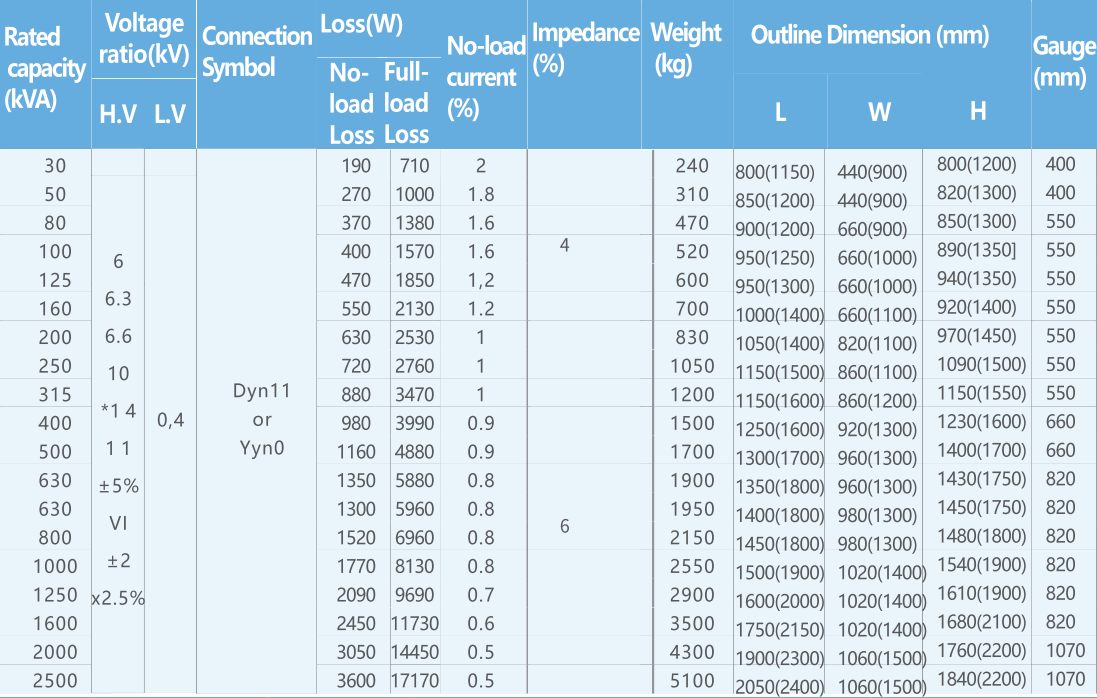

The Technical Specifications of this Cast Resin Transformer define its electrical performance and mechanical parameters for indoor distribution applications. The F Class Dry Transformer features epoxy cast resin insulation with F-class temperature rating, ensuring reliable operation in demanding indoor environments. This Indoor Distribution Transformer offers excellent heat dissipation characteristics, and its coil does not absorb moisture, making it suitable for installation in loading centers and other indoor locations. The Cast Resin Transformer provides low noise and low loss operation, delivering energy-saving and economic performance with minimal maintenance requirements. This F Class Dry Transformer exhibits high mechanical strength, strong insulation properties, and good short-circuit withstand capacity. The Indoor Distribution Transformer also offers superior fire protection, anti-explosion, and disaster-prevention performance. With low loss, compact size, light weight, and easy installation, this Cast Resin Transformer is an ideal choice for urban distribution networks. Each F Class Dry Transformer undergoes routine electrical and thermal testing to verify compliance with stated specifications. Proper installation of this Indoor Distribution Transformer ensures long-term reliability in 10kV indoor distribution systems.
