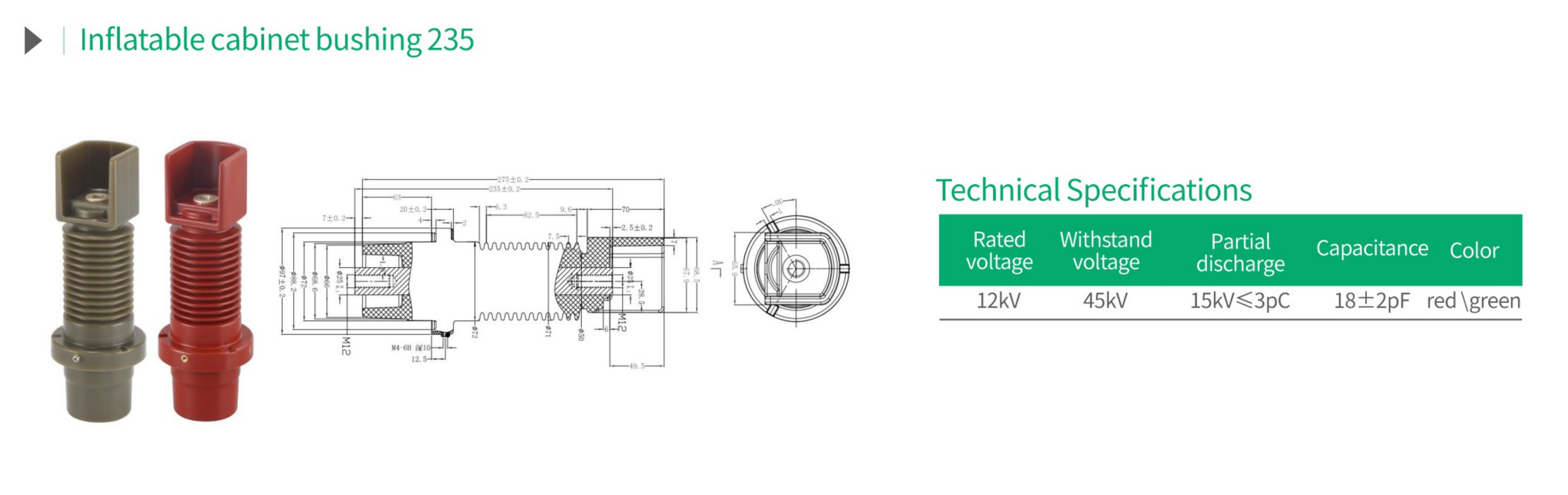

Inflatable Cabinet Accessories-bushing 235

Detailed Description
Inflatable cabinet bushing 235 with rated voltage 12kV, withstand voltage 45kV, partial discharge 15kV ≤ 3pC, capacitance 18 ± 2pF, and colors red and green.

Technical Specifications

The Technical Specifications of this Inflatable Cabinet Accessories-bushing 235 product define its electrical performance parameters for gas-insulated switchgear applications. The rated voltage of 12kV and withstand voltage of 45kV establish the dielectric strength of this Inflatable cabinet bushing 235, while the partial discharge level of 15kV ≤ 3pC ensures superior insulation quality with minimal internal defects. The capacitance value of 18 ± 2pF contributes to uniform electric field distribution across the bushing surface. This Inflatable cabinet bushing 235 is available in red and green color options, facilitating phase identification in multi-phase switchgear assemblies. As a certified Switchgear Insulation Component, this Inflatable Cabinet Accessories-bushing 235 is specifically designed for inflatable cabinet installations, providing reliable electrical insulation between cable terminations and switchgear compartments. The dual-color availability of this Inflatable cabinet bushing 235 allows for flexible system integration. Each Switchgear Insulation Component undergoes routine partial discharge and capacitance testing to verify compliance. Proper installation of this Inflatable Cabinet Accessories-bushing 235 as a Switchgear Insulation Component ensures long-term reliability in 12kV indoor distribution networks.

Rated voltage	Withstand voltage	Partial discharge	Capacitance	Color
12kV	45kV	15kV ≤ 3pC	18 ± 2pF	red / green
