Bushing Insert

Detailed Description

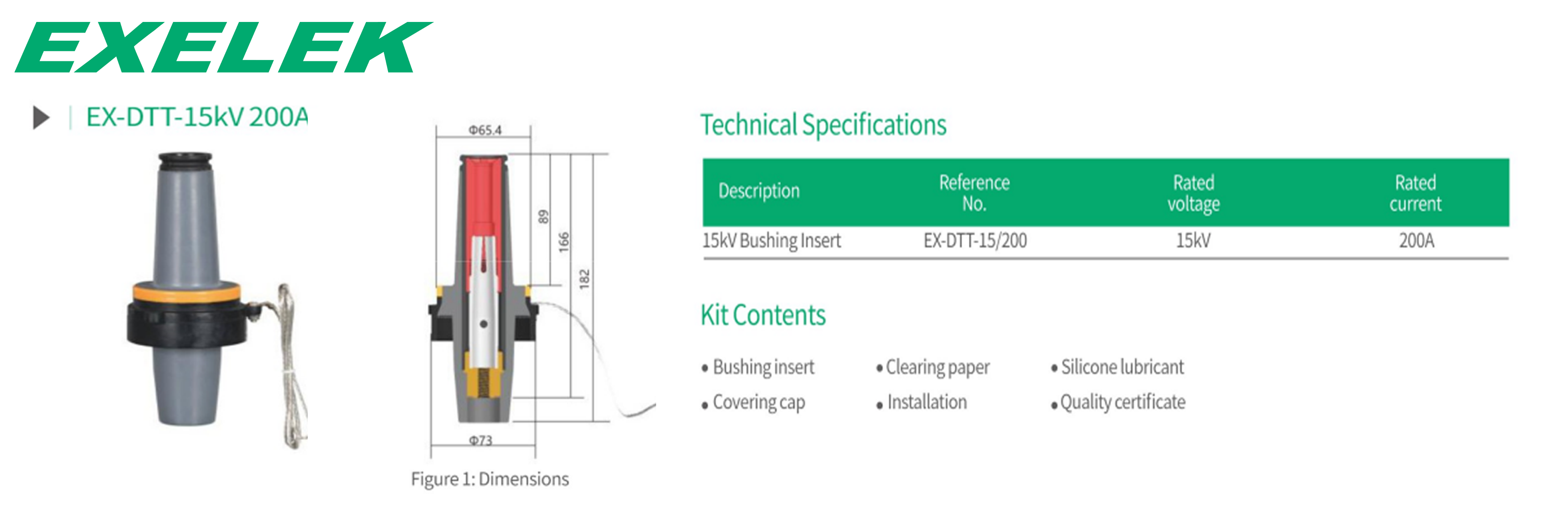

15kV 200A Bushing insert threads into a universal bushing well to provide the same function as an integral load break bushing. Using bushing inserts makes field installation and replacement possible and efficient. Bushing inserts and elbow connectors comprise the essential components of all load break connections.

Technical Specifications

The Technical Specifications of this Bushing Insert define its electrical ratings and mechanical interface for load break connection applications. The rated voltage of 15kV and rated current of 200A establish the operating envelope for the EX DTT 15kV 200A model, ensuring reliable performance within medium-voltage distribution systems. This Bushing Insert is designed with a threaded interface that securely engages into a universal bushing well, enabling field installation and replacement without specialized tooling. As a critical Switchgear Insulation Component, the EX DTT 15kV 200A Bushing Insert provides the same functional characteristics as an integral load break bushing while offering the logistical advantage of modular replacement. When combined with matching elbow connectors, this Bushing Insert forms the complete load break connection assembly. The Technical Specifications table confirms the reference number EX DTT 15kV 200A, which corresponds to the 15kV 200A rating. Each Bushing Insert produced undergoes routine dielectric and mechanical testing to verify that this Switchgear Insulation Component meets the stated voltage and current ratings. Proper installation of this Bushing Insert ensures reliable load break switching performance as a Switchgear Insulation Component in pad-mounted transformers and underground distribution networks.

Description	Reference No.	Rated voltage	Rated current
15kV Bushing Insert	EX-DTT-15/200	15kV	200A
