Bushing Well

Detailed Description
15kV/25kV 200A Bushing Well is widely used in the high-voltage circuit of the pad-mounted, submersible transformer, switchgears, etc. A load break bushing insert threads into a universal bushing well to provide the same function as an integral load break bushing. The bushing is used together with the cable accessories such as: bushing insert, Rotatable Feed thru Insert etc. The casing seat is molded using high quality insulating material, when mated with comparably rated products, it provides a fully shielded insulating connection.

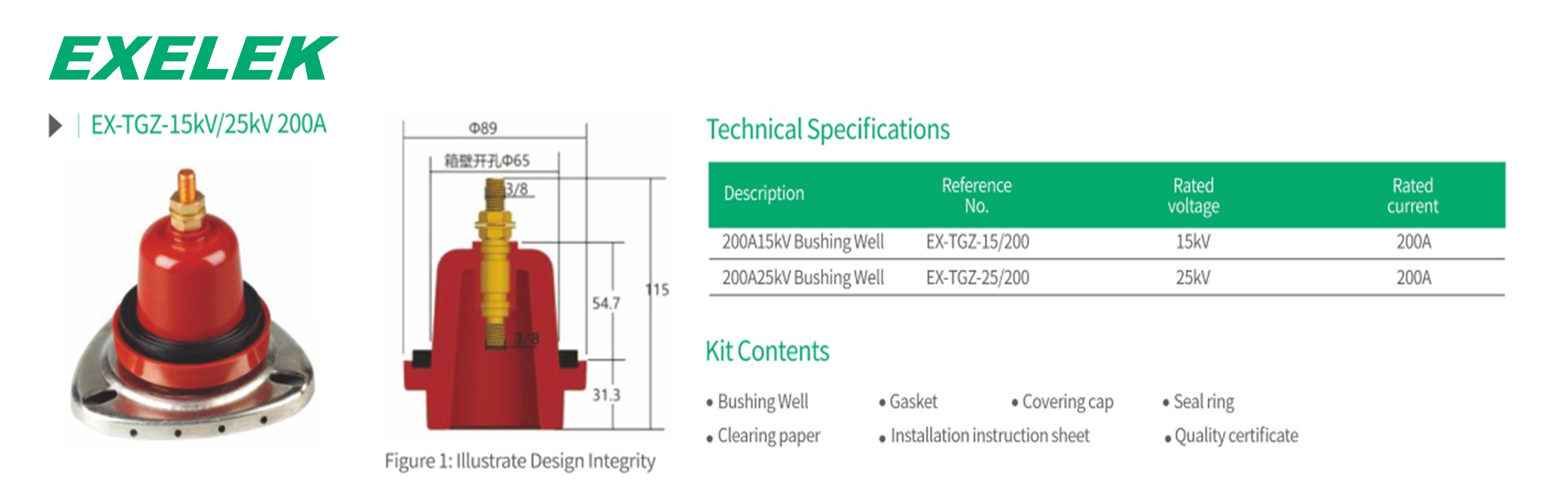

Technical Specifications

The Technical Specifications of this Bushing Well define its electrical ratings and mechanical interface for high-voltage circuit applications. The rated voltage options of 15kV and 25kV, both with a rated current of 200A, establish the operating envelope for the EX-TGZ-15kV/25kV 200A model, ensuring reliable performance in pad-mounted transformers, submersible transformers, and switchgear assemblies. This Bushing Well is designed with a universal interface that accepts a load break bushing insert, providing the same function as an integral load break bushing. The EX-TGZ-15kV/25kV 200A Bushing Well is used together with cable accessories such as bushing inserts and rotatable feedthru inserts. The casing seat of this Bushing Well is molded using high-quality insulating material, and when mated with comparably rated products, this Switchgear Insulation Component provides a fully shielded insulating connection. As a critical Switchgear Insulation Component, this Bushing Well ensures safe and reliable cable termination interfaces in underground distribution networks. Each Switchgear Insulation Component undergoes routine dielectric and mechanical testing to verify compliance. Proper installation of this Bushing Well as a Switchgear Insulation Component ensures long-term reliability in 15kV and 25kV distribution systems.

Kit Contents

Bushing Well,Gasket,Covering cap,Seal ring,Cleaning paper,Installation instruction sheet,Quality certificate
