KYN28A-12(GZS) MV Switchgear Fittings - Chassis Truck, VACDP-□-□/G/S

Specification Code:VACDP -□-□/G/S

VACDP chassis truck mid-door interlock function:
A: VACDP-□-□ /G/S chassis truck
This type only add door closing operation, the handle of chassis could be shook only when the cabinet door closed. This interlock type don' t request to modify the cabinet door.
B: VACDP-□-□/S chassis truck
This type add locking on item A, when the handcart moves away from testing position , the door will be locked, only when the handcart back to the testing position, the cabinet door can be opened. This interlock type request to modify the cabinet.

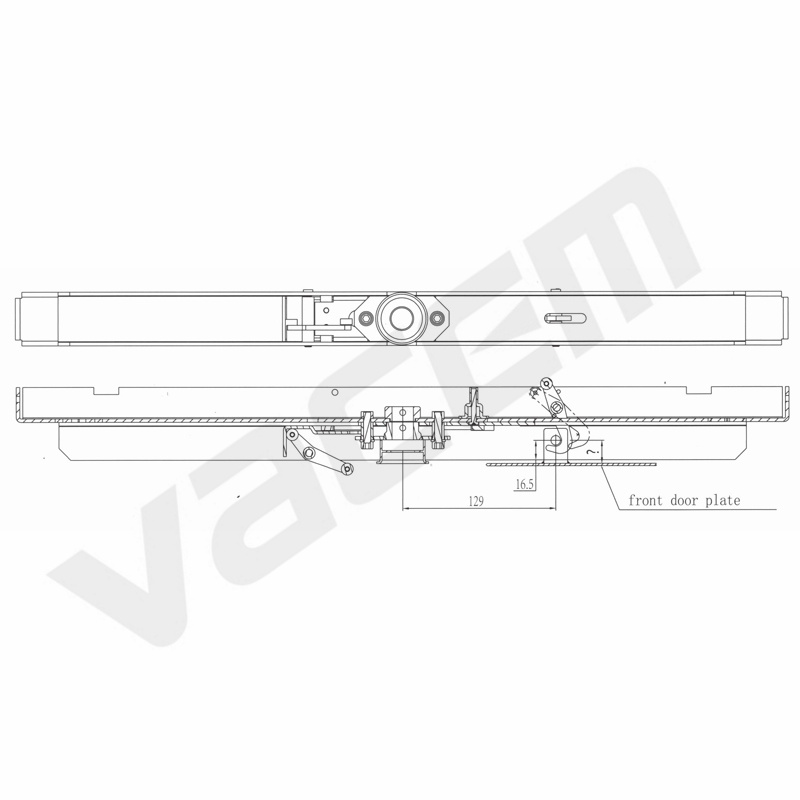

Mid-door interlock assembly drawing
