Category

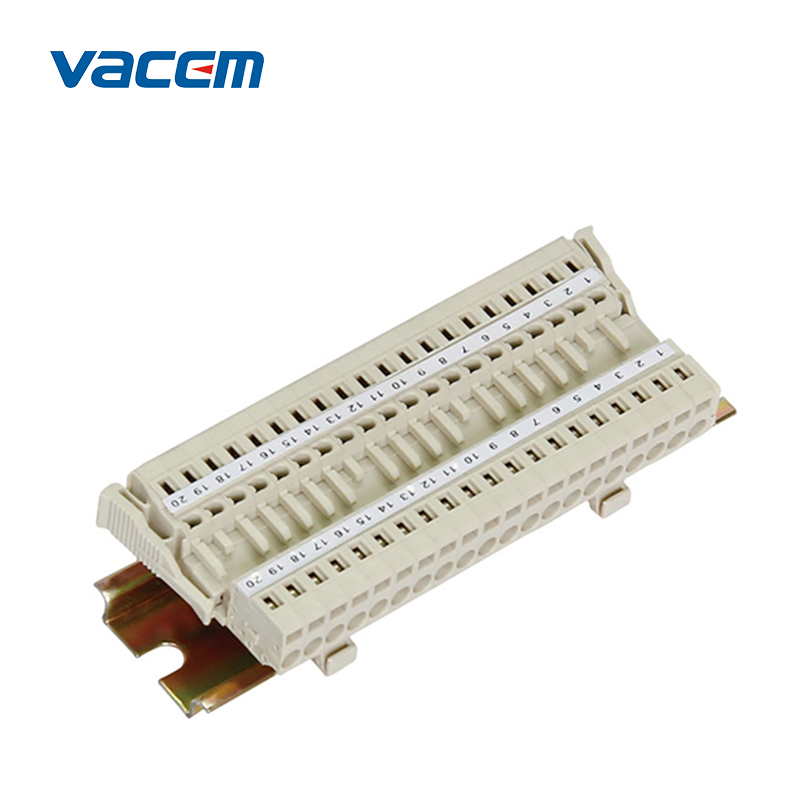

Connector (terminal block)
VZ01
1. The only tool needed, other than pulling out the wire, is a flat-blade screwdriver. When the wire is inserted, the stainless steel cage spring clamping structure (CAGE CLAMP) will automatically provide the appropriate clamping force to make a 100% reliable connection.
2. The clamping plane of the cage spring (CAGE CLAMP) clamps the wire and the guide bar, and also protects the wire from damage.
3. The guide bar is made of electrolytic copper plated with soft tin (Sn60Pb40). In order to ensure the air tightness of the conductor contact.
4. High clamping force (N) acts on a small contact area (mm²) resulting in a particularly large contact pressure (N/mm²)
2. The clamping plane of the cage spring (CAGE CLAMP) clamps the wire and the guide bar, and also protects the wire from damage.
3. The guide bar is made of electrolytic copper plated with soft tin (Sn60Pb40). In order to ensure the air tightness of the conductor contact.
4. High clamping force (N) acts on a small contact area (mm²) resulting in a particularly large contact pressure (N/mm²)
Quantity:

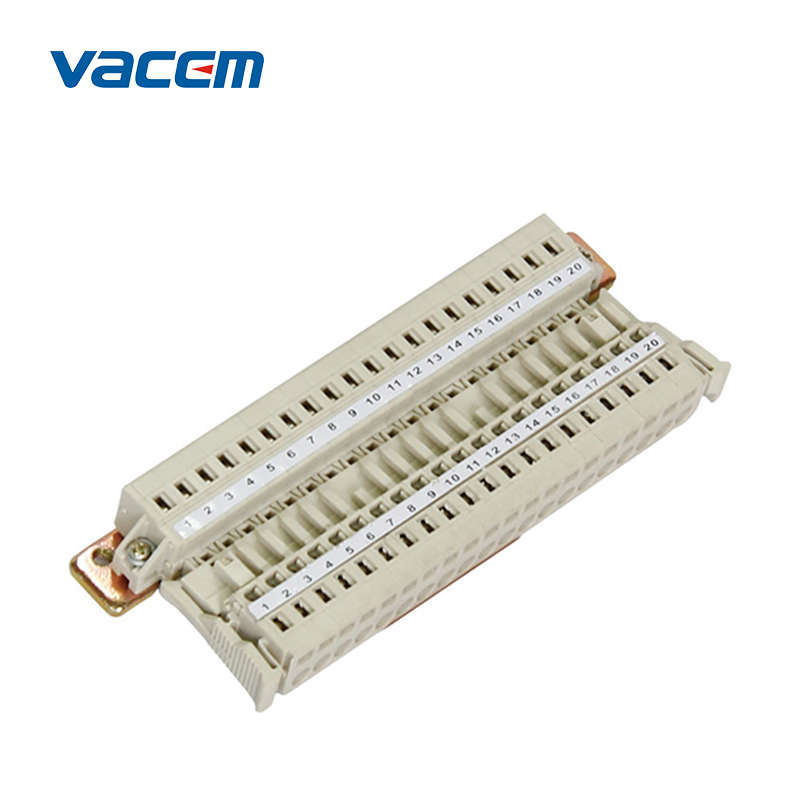

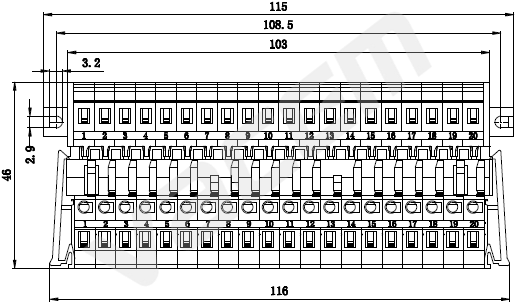

 Product Name：Connector (terminal block) Product Code：VZ01.00.010 Specification：20 Line (error-proof) yellow |  |

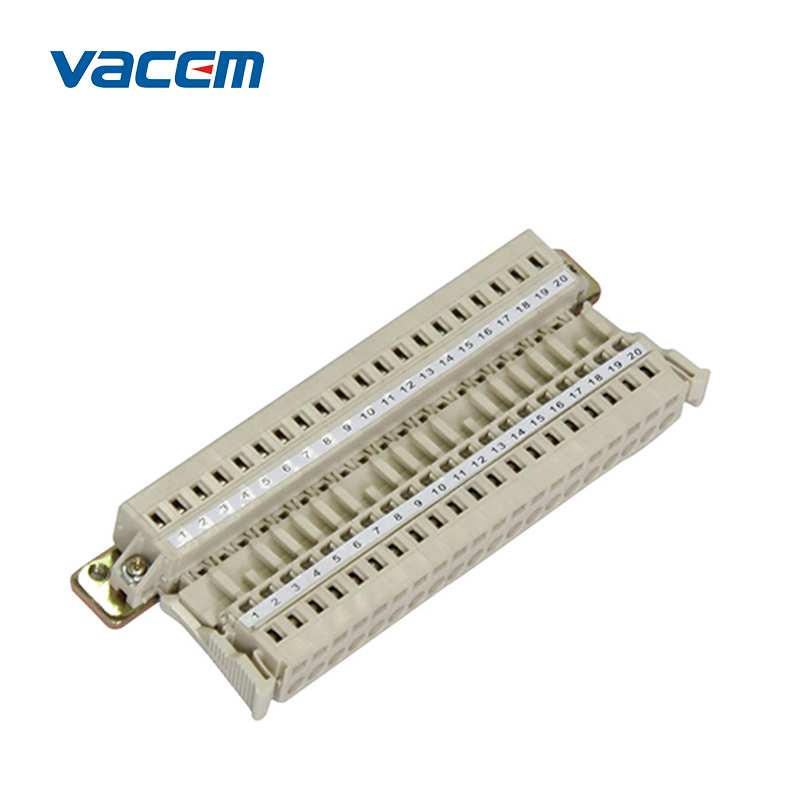

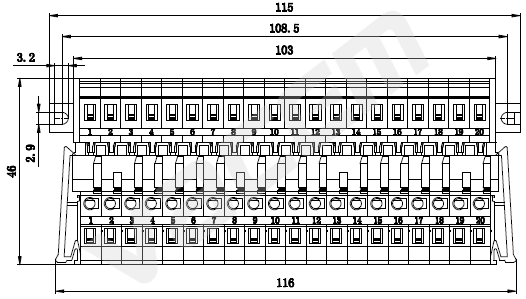

 Product Name：Connector (terminal block) Product Code：VZ01.00.004 Specification：20 Line (with hat) yellow |  |

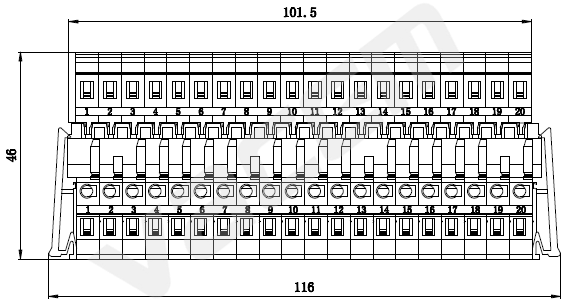

 Product Name：Connector (terminal block) Product Code：VZ01.00.001 Specification：20 Line (without hat) |  |
Purchase in additional if you demand:

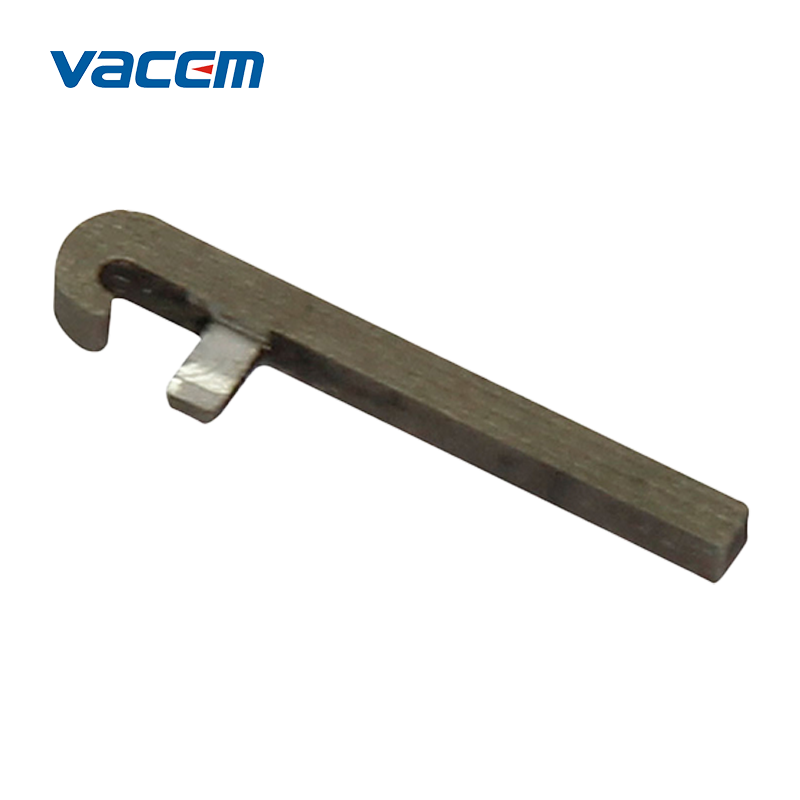

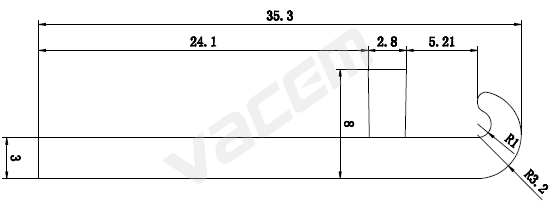

 Product Name：Parts for Connector (terminal block) Product Code：VZ01.07.001 Specification：Wiring Tool for terminal block VZ01 |  |

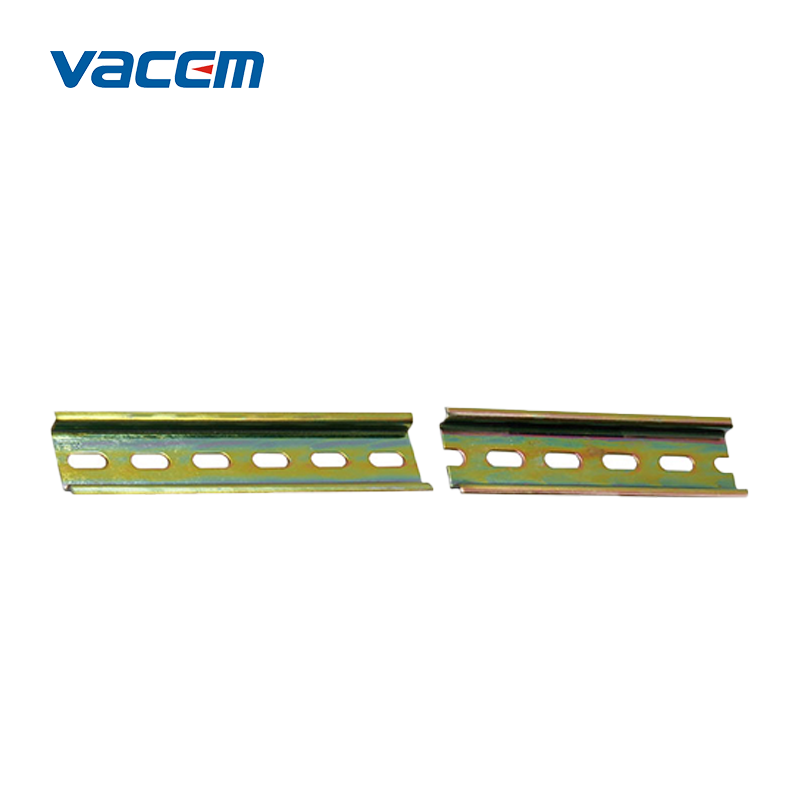

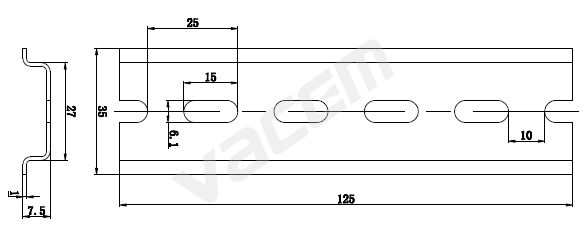

 Product Name：Din rail Product Code：VZ01.50.XXX Specification：125mm, parts for terminal block VZ01 |  |

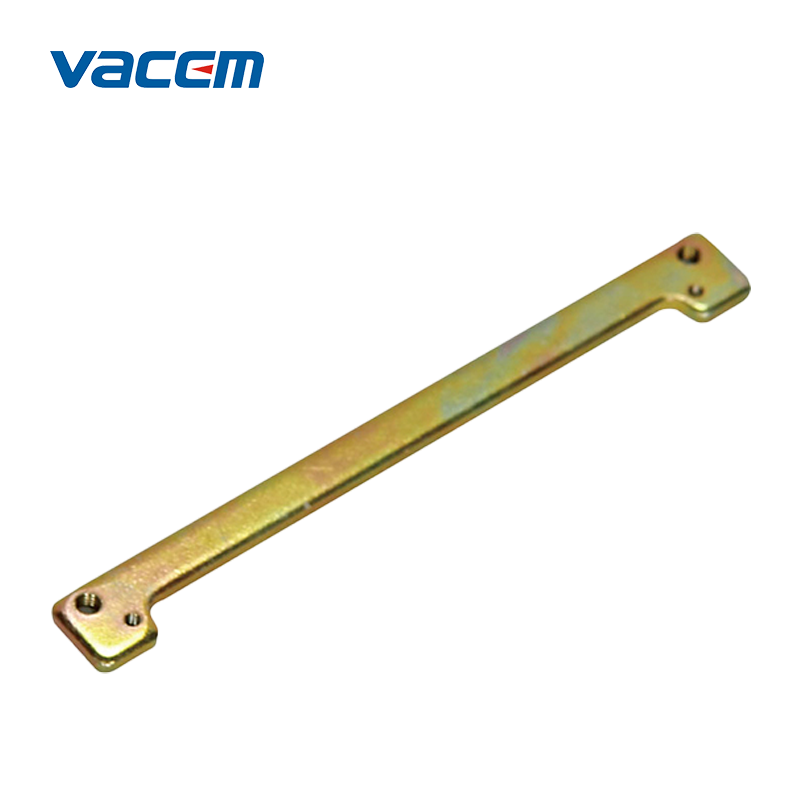

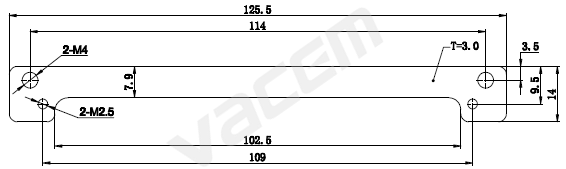

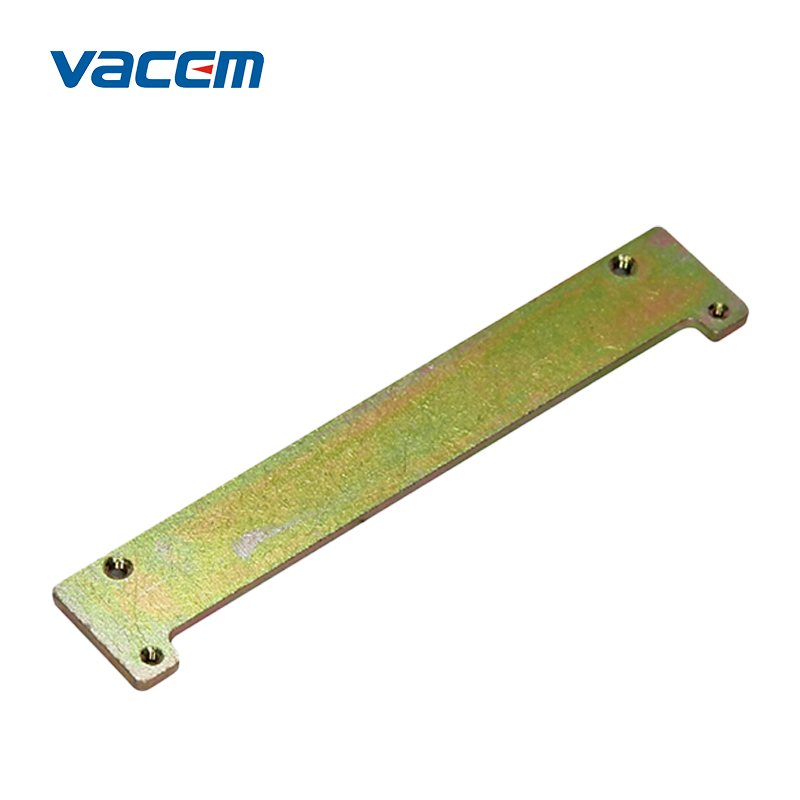

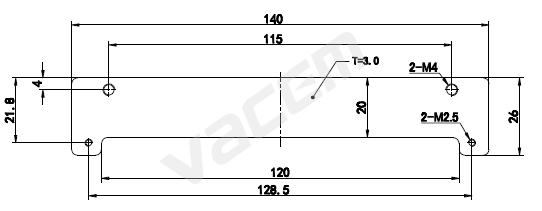

 Product Name：Iron parts Product Code：VZ01.03.005 Specification：for terminal block VZ01 |  |

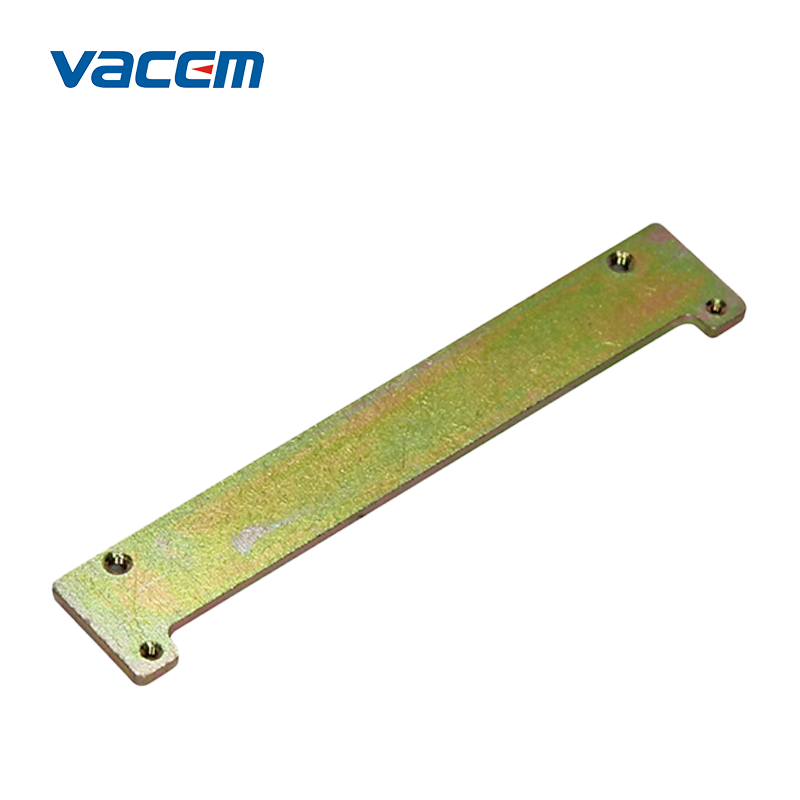

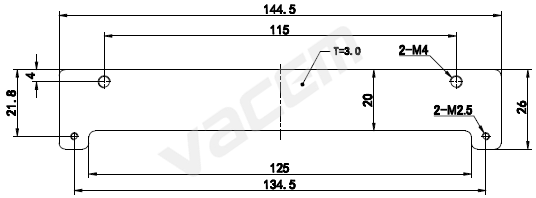

 Product Name：Iron parts Product Code：VZ01.03.004 Specification：for terminal block VZ01 |  |
 Product Name：Iron parts Product Code：VZ01.03.001 Specification：for terminal block VZ01 |  |
