Category
Connector (screw type)
EXVZ01/02
1. The only tool needed, other than pulling out the wire, is a flat-blade screwdriver. When the wire is inserted, the stainless steel cage spring clamping structure (CAGE CLAMP) will automatically provide the appropriate clamping force to make a 100% reliable connection.
2. The clamping plane of the cage spring (CAGE CLAMP) clamps the wire and the guide bar, and also protects the wire from damage.
3. The guide bar is made of electrolytic copper plated with soft tin (Sn60Pb40). In order to ensure the air tightness of the conductor contact.
4. High clamping force (N) acts on a small contact area (mm²) resulting in a particularly large contact pressure (N/mm²)
2. The clamping plane of the cage spring (CAGE CLAMP) clamps the wire and the guide bar, and also protects the wire from damage.
3. The guide bar is made of electrolytic copper plated with soft tin (Sn60Pb40). In order to ensure the air tightness of the conductor contact.
4. High clamping force (N) acts on a small contact area (mm²) resulting in a particularly large contact pressure (N/mm²)
Quantity:

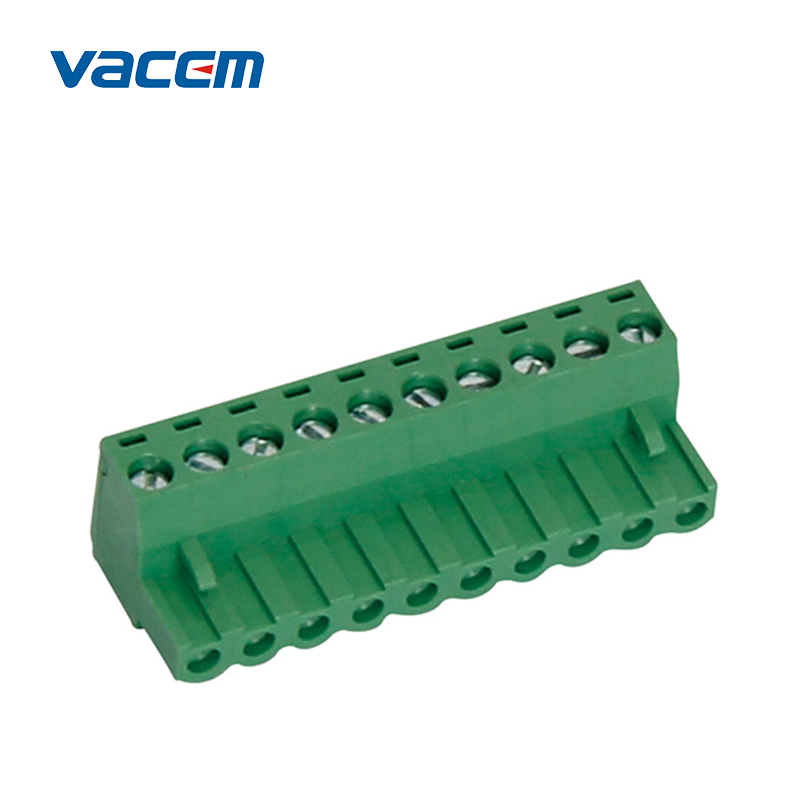

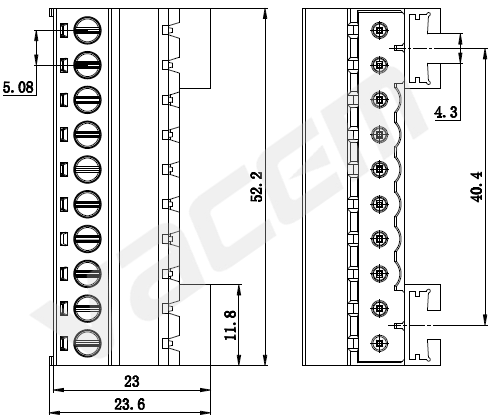

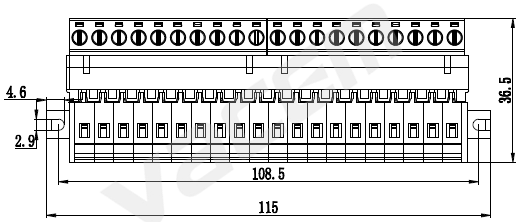

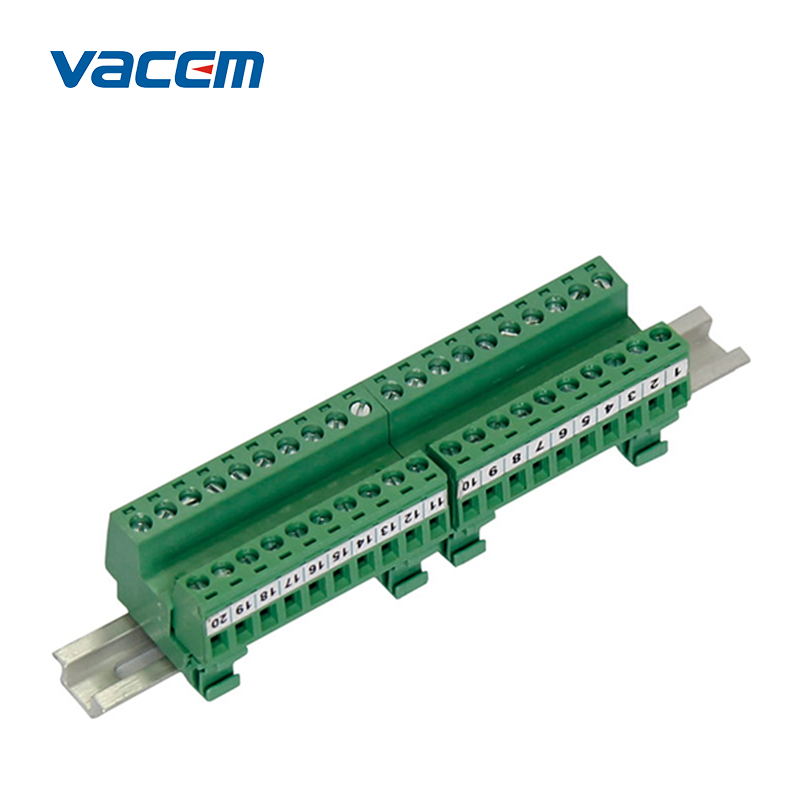

 Product Name：Connector (screw type) Product Code：VZ01.00.007 Specification：20 Line, green |  |
 Product Name：Connector (screw type) Product Code：VZ02.00.002 Specification：20 Line, green |  |
Purchase in additional if you demand.

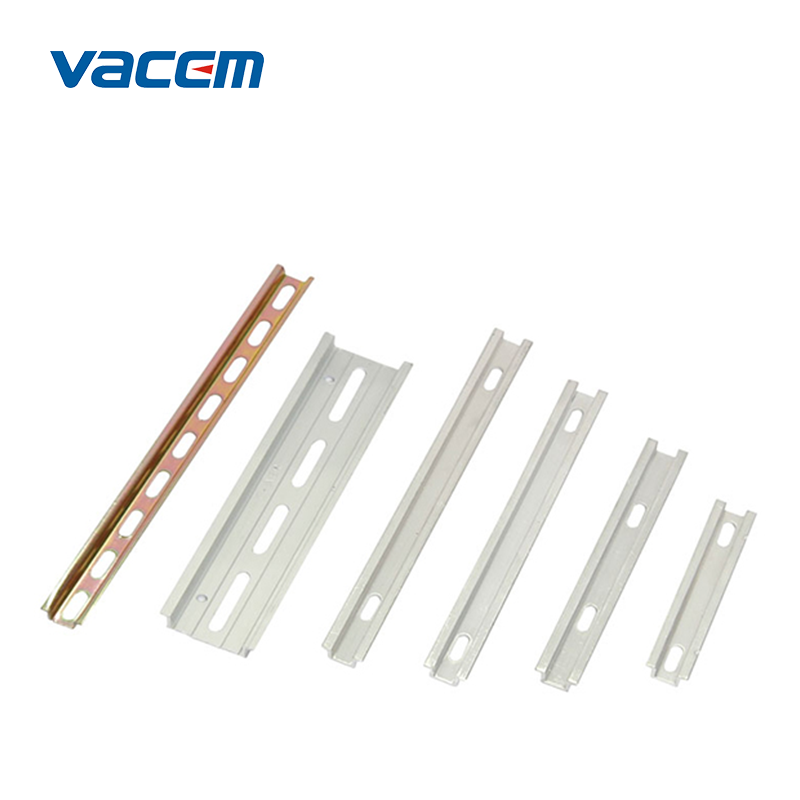

 Part Name：Din rail | |

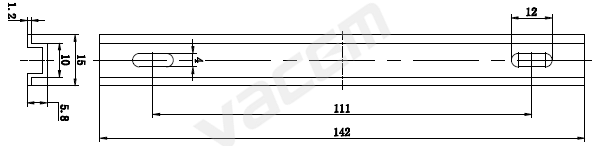

| Product Code: VZ02.04.001 Specification：142mm |  |

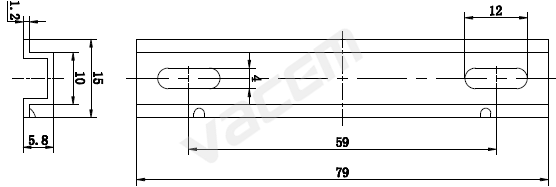

| Product Code：VZ02.04.002 Specification：79mm |  |
| Product Code：VZ02.04.003 Specification：113mm |  |
| Product Code：VZ02.04.004 Specification：160mm |  |

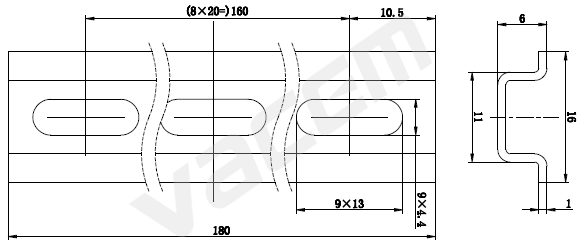

| Product Code：VZ02.04.005 Specification：180mm |  |

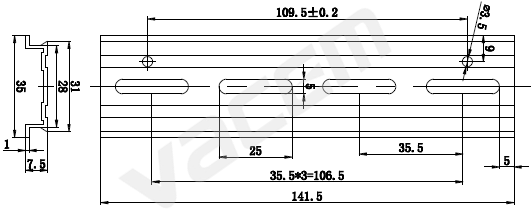

Product Code：VZ01.50.003 Specification：141.5mm |  |

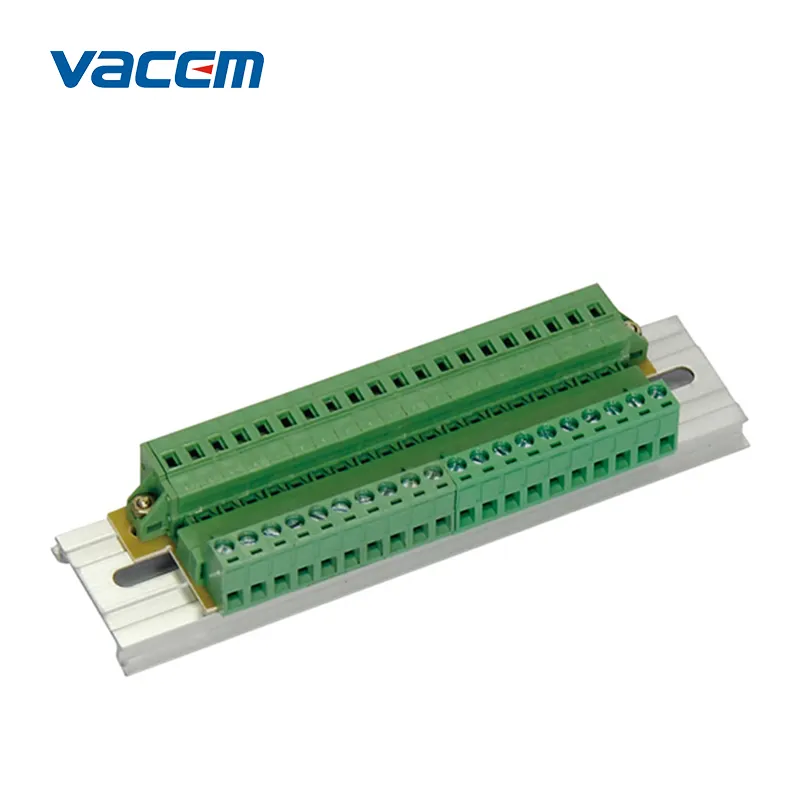

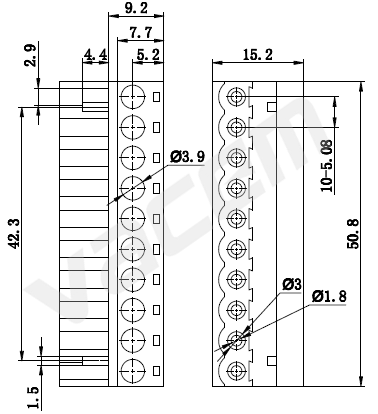

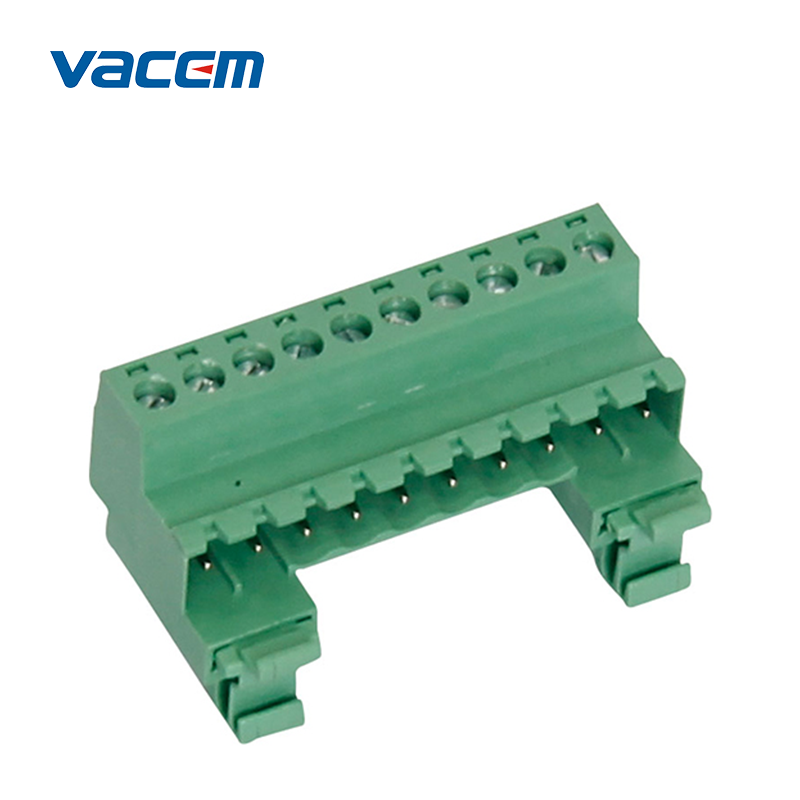

Product Name：Terminal base Specification：10 lines，for terminal block (screw type), green | |
 Product Code：VZ02.01.001 |  |
 Product Code：VZ02.02.001 |  |
