10kV MV Outdoor Isolating Switch (Anti-Pollution), GW9-12(W)

1. General description

 GW9-12(W) series outdoor high voltage AC disconnecting switch is a high voltage switch of single pole structure, for making and breaking circuit under voltage and no load in outdoor 12kV line network. Matched with fixed retractors and self-locking device, using insulated hook stick to operate flexibly and reliably. The anti-pollution one can meet user's requirements in seriously polluted areas, can effectively solve the pollution flash over problem of disconnecting switch in the operation.

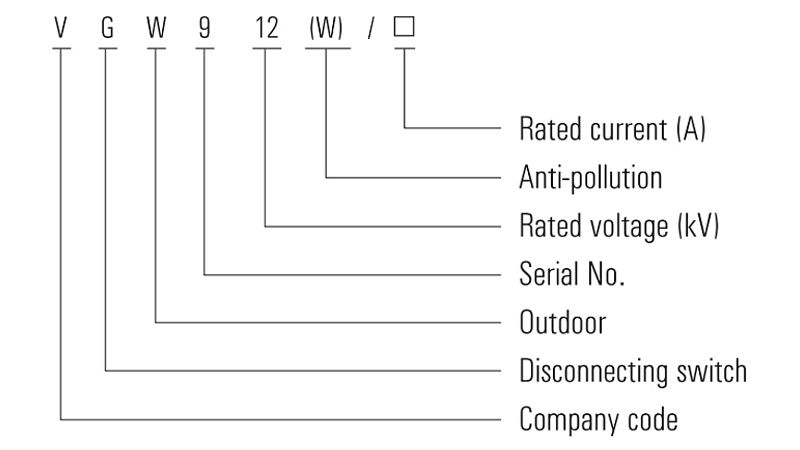

2. Type and meaning

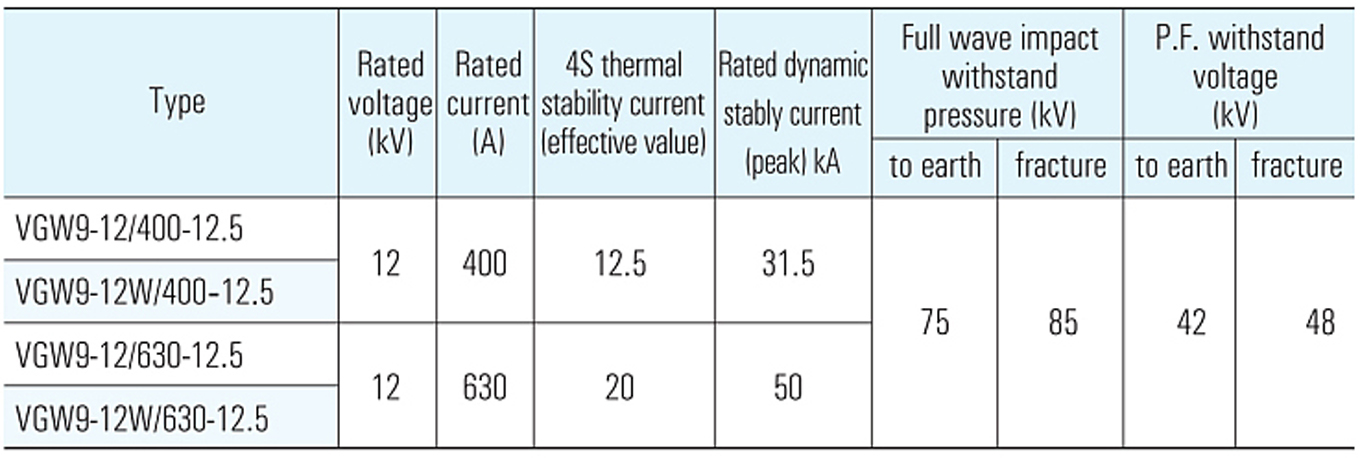

3. Main technical parameter
