KYN28A-12(GZS) MV Switchgear Fittings - Earthing Switch Operation Mechanism Interlocking Device, 5VACY.363.010.3 (Used for the Transmission Operation of Crank Arm)

Specification Code:5VACY.363.010.3

Specification Description:(used for the transmission operation of crank arm) assembly drawing

Earthing switch operation mechanism interlocking device

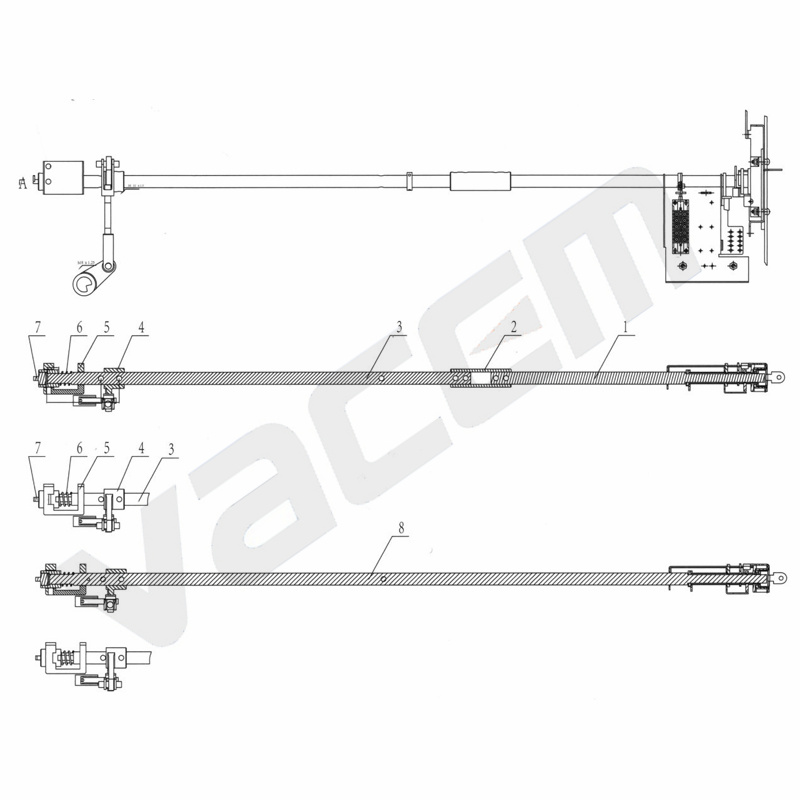

(used for the transmission operation of crank arm)5vacy.363.010.3 assembly drawing

Introduction:
    This type interlocking device is improve based on 5VACY.363.010 type interlocking device, users do not need to modify any size of the cabinet, it can achieve backdoor backlocking (the backdoor is not closed, the earthing switch can not be open, the same function as 5VACY.363.010.1 type). Furthermore, the interlock of this type is more reliable and stronger than 5VACY.363.010.1, which can minimize the parts damaged by incorrect operation. Please mark out if need backdoor emergency unlocking function.

Earthing switch operation mechanism interlocking device

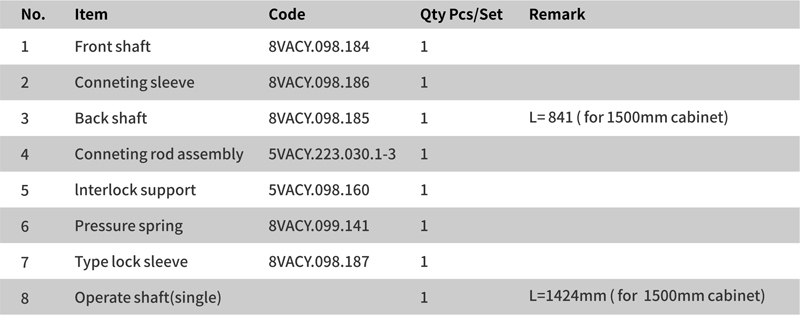

(transmission operation of connecting rod)5VACY.363.010.3 assembly sheet
