KYN28A-12(GZS) MV Switchgear Fittings - Earthing Switch Operation Mechanism Interlocking Device, 5VACY.363.010.2 (Middle Interlock Solution)

Specification Code:5VACY.363.010 .2

Specification Description:(middle interlock solution) assembly drawing

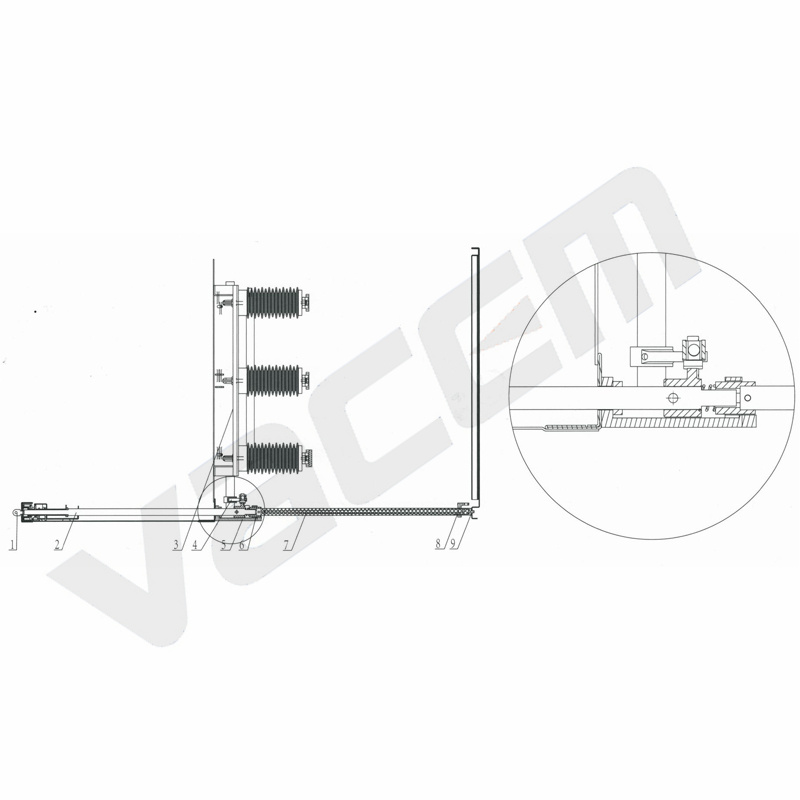

12kV Earthing Switch Operation Mechanism Interlocking Device 5VACY.363.010 .2 (middle interlock solution) assembly drawing

Introduction:
    This plan applies only to the earthing switch mounted in the middle. and the rear part of it adopts insulating material, therefore, the reliability and security are greatly improved, no need to care about the ground clearance between the busbar and the operating shaft ,and the rear door can be reversed blocking the same strength as 5VACY.363.010.3.

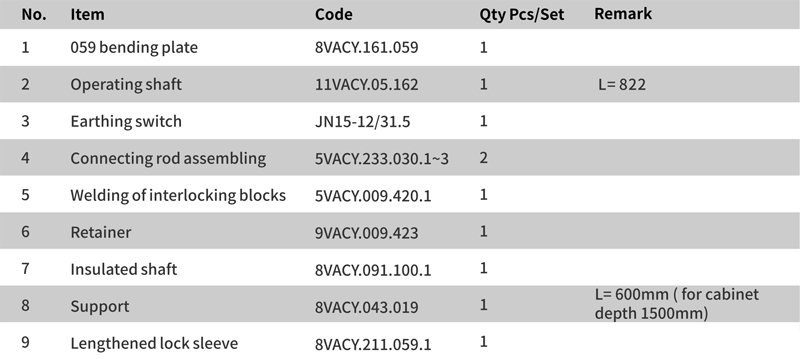

Configuration table of Earthing switch operating mechanism interlocking device 5VACY.363.010 .2

(middle interlock solution)
