KYN61-36(40.5) MV Switchgear Fittings - 35kV Earthing Switch Operation Mechanism Interlocking Device, 5VACY.577.1004/5VACY.577.1004.1
EXP00000434
Delivery:
FOB
Quantity:
Specification Code:5VACY.577.1004/5VACY.577.1004.1
Specification Description:used for bi-directional bevel gear operation
36kV Earthing switch operation mechanism interlocking device

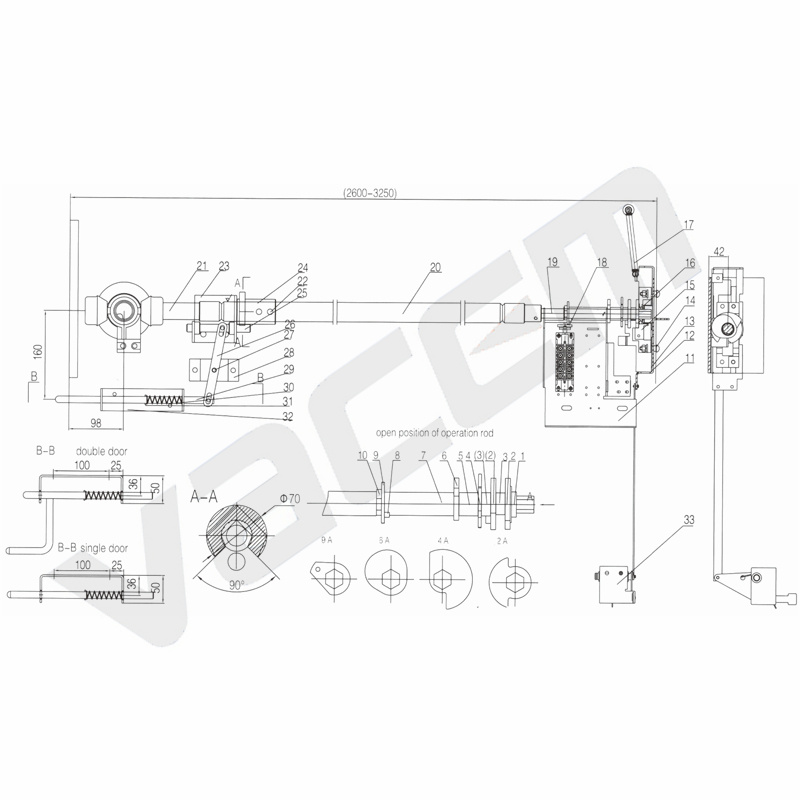

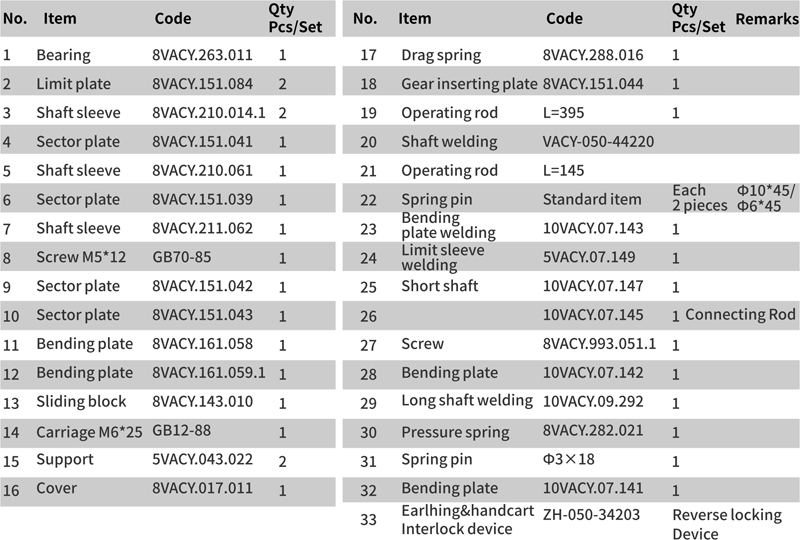

(used for bi-directional bevel gear operation)5VACY.577.1004/5VACY.577.1004.1 assembly drawing
Note: Match with JN22B earthing switch and VD4 similar circuit breaker
