KYN28A-12(GZS) MV Switchgear Fittings - Earthing Switch Operation Mechanism Interlocking Device, 5VACY.577.1001(Transmission Operation with the Bevel Gear)

Specification Code:5VACY.577.1001

Specification Description:(transmission operation with the bevel gear) assembly drawing

Earthing switch operation mechanism interlocking device

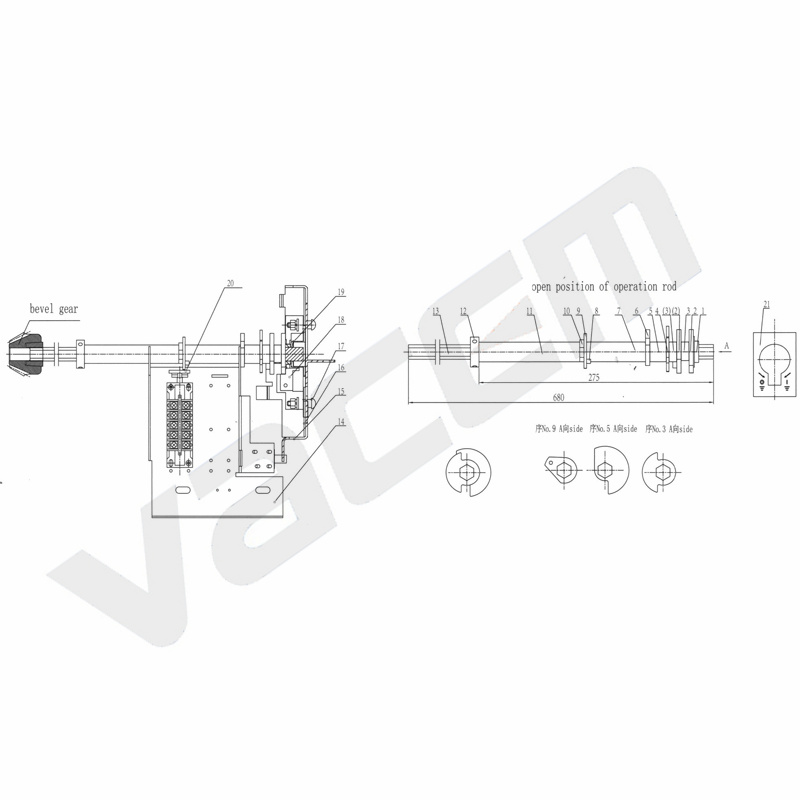

(transmission operation with the bevel gear)5VACY.577.1001 assembly drawing

Earthing switch operation mechanism interlocking device

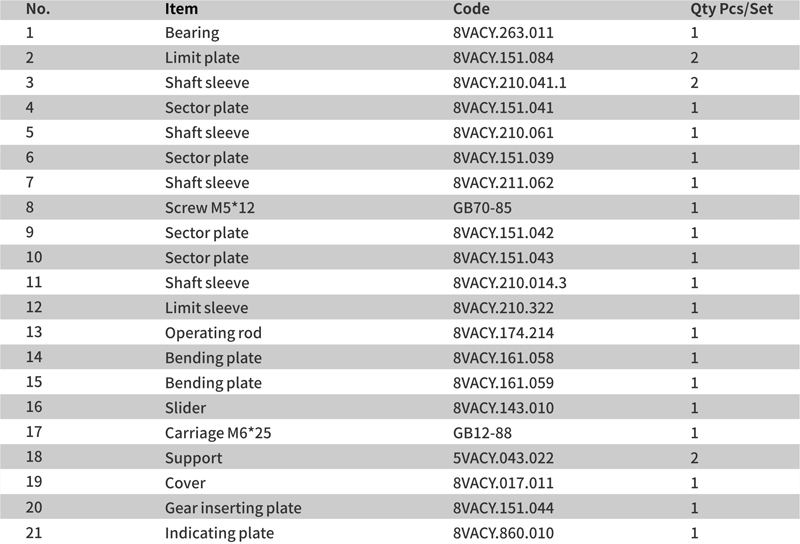

(transmission operation with the bevel gear)5VACY.577.1001 assembly sheet
​​​​​

Note: 1.Please indicate if this device need to be interlocked with the lower door 2.This mechanism includes bending plate(8VACY.161.874)and fixed block(8VACY.143.501).
