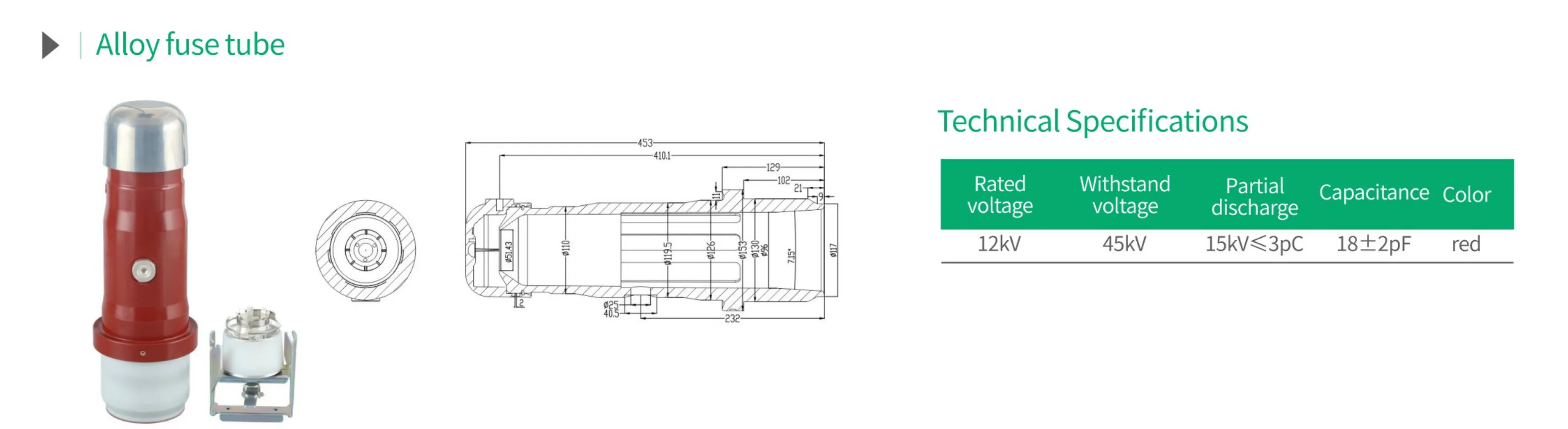

Inflatable Cabinet Accessories-Alloy fuse tube

Detailed Description
Alloy fuse tube with rated voltage 12kV, withstand voltage 45kV, partial discharge 15kV ≤ 3pC, capacitance 18 ± 2pF, and red color.

Technical Specifications

The Technical Specifications of this Inflatable Cabinet Accessories-Alloy fuse tube product define its electrical performance parameters for medium-voltage switchgear applications. The rated voltage of 12kV and withstand voltage of 45kV establish the dielectric strength of this Alloy fuse tube, while the partial discharge level of 15kV ≤ 3pC ensures superior insulation quality with minimal internal defects. The capacitance value of 18 ± 2pF contributes to uniform electric field distribution across the fuse tube surface. This Alloy fuse tube features a red-colored housing that facilitates phase identification in multi-phase switchgear assemblies. As a certified Switchgear Insulation Component, this Inflatable Cabinet Accessories-Alloy fuse tube is specifically designed for inflatable cabinet installations, providing reliable overcurrent protection and electrical insulation between cable terminations and switchgear compartments. The alloy construction of this Alloy fuse tube ensures excellent thermal conductivity and mechanical strength. Each Switchgear Insulation Component undergoes routine partial discharge and capacitance testing to verify compliance. Proper installation of this Inflatable Cabinet Accessories-Alloy fuse tube as a Switchgear Insulation Component ensures long-term reliability in 12kV indoor distribution networks.

Rated voltage	Withstand voltage	Partial discharge	Capacitance	Color
12kV	45kV	15kV ≤ 3pC	18 ± 2pF	red
