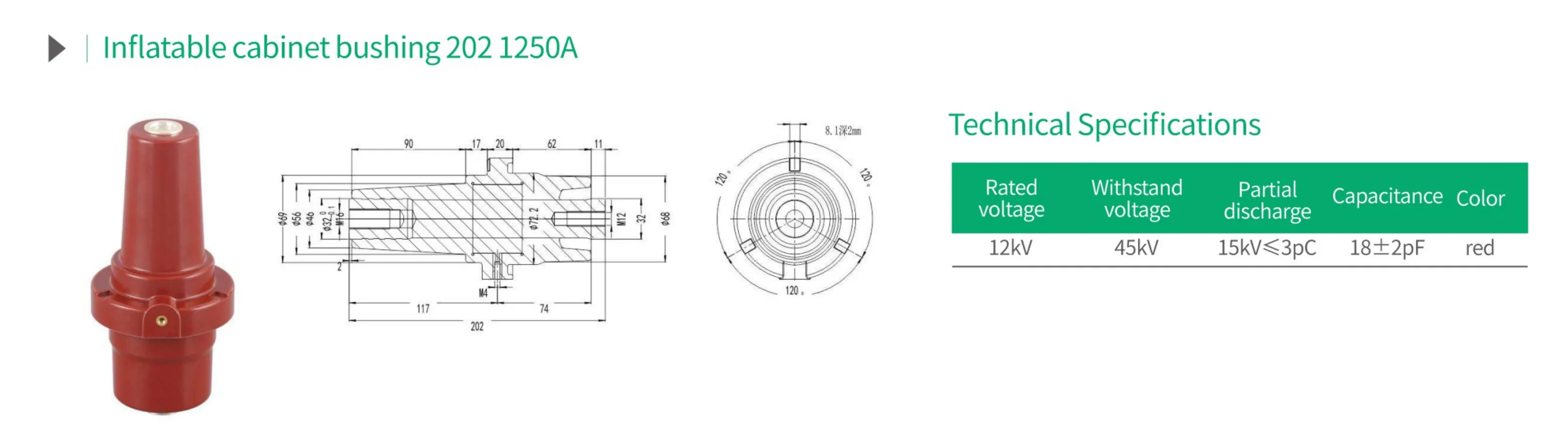

Inflatable Cabinet Accessories-Inflatable cabinet bushing 202 1250A

Detailed Description
Inflatable cabinet bushing 202 1250A with rated voltage 12kV, withstand voltage 45kV, partial discharge 15kV ≤ 3pC, capacitance 18 ± 2pF, and red color.

Technical Specifications

The Technical Specifications of this inflatable cabinet accessories product define its electrical performance parameters for high-voltage power system applications. The rated voltage of 12kV and withstand voltage of 45kV establish the dielectric strength of this inflatable cabinet bushing model 202 1250A, while the partial discharge level of 15kV ≤ 3pC ensures superior insulation quality with minimal internal defects. The capacitance value of 18 ± 2pF contributes to uniform electric field distribution along the bushing surface. This inflatable cabinet bushing features a red-colored housing that facilitates phase identification in multi-phase switchgear assemblies. As a critical high voltage power system bushing, this inflatable cabinet accessories component is specifically designed for inflatable cabinet installations, providing reliable electrical insulation between cable terminations and switchgear compartments. The 1250A current rating of this inflatable cabinet bushing supports continuous operation at full load. Each high voltage power system bushing undergoes routine partial discharge and capacitance testing to verify compliance. Proper installation of this inflatable cabinet bushing as a high voltage power system bushing ensures long-term reliability in 12kV indoor distribution networks.

Rated voltage	Withstand voltage	Partial discharge	Capacitance	Color
12kV	45kV	15kV ≤ 3pC	18 ± 2pF	red
