Inflatable Catbine Accessories

Detailed Description

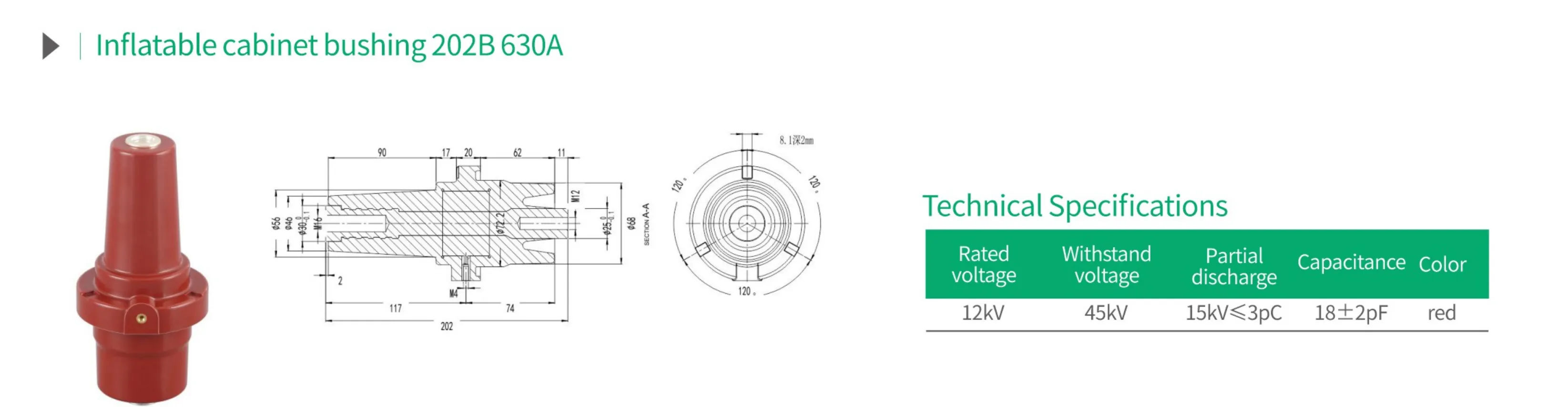

Inflatable cabinet bushing 202B 630A with rated voltage 12kV, withstand voltage 45kV, partial discharge 15kV ≤ 3pC, capacitance 18 ± 2pF, and red color.

Technical Specifications

The Technical Specifications of this Inflatable Catbine Accessories product define its electrical performance parameters for gas-insulated switchgear applications. The rated voltage of 12kV and withstand voltage of 45kV establish the dielectric strength of this Inflatable catbine bushing 202B 630A, while the partial discharge level of 15kV ≤ 3pC ensures superior insulation quality and minimal internal defects. The capacitance value of 18 ± 2pF contributes to uniform electric field distribution across the bushing surface. This Inflatable catbine bushing 202B 630A features a red-colored housing that facilitates phase identification in multi-phase switchgear assemblies. As a certified Switchgear Insulation Component, this Inflatable Catbine Accessories product is specifically designed for inflatable cabinet installations, providing reliable electrical insulation between cable terminations and switchgear compartments. The 630A current rating of this Inflatable catbine bushing 202B 630A supports continuous operation at full load. Each Switchgear Insulation Component undergoes routine partial discharge and capacitance testing to verify compliance. Proper installation of this Inflatable Catbine Accessories bushing as a Switchgear Insulation Component ensures long-term reliability in 12kV indoor distribution networks.

Rated voltage	Withstand voltage	Partial discharge	Capacitance	Color
12kV	45kV	15kV ≤ 3pC	18 ± 2pF	red
