KYN28A-12(GZS) MV Switchgear Fittings - Interlock Mechanism, 5VACY.239.010.3

Specification Code:5VACY.239.010.3

Specification Description: Interlock mechanism assembly drawing

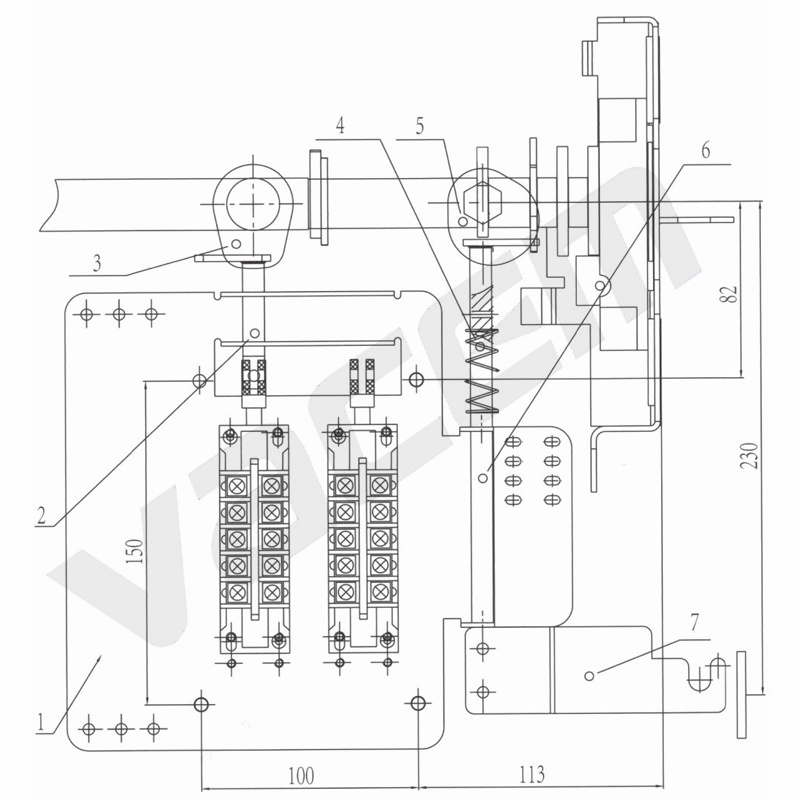

Interlock mechanism (5VACY.239.010.3) assembly drawing

    After improvement,the mechanism can achieve the goal that when the grounding knife is opening,the front underside door can not be opened, the grounding knife must be closed before open the front underside door in order to ensure personal safely.

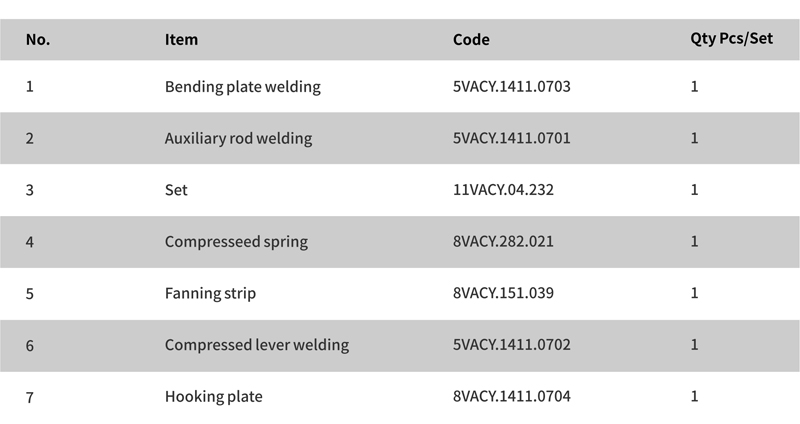

Interlocking device (5VACY.239.012) assembly sheet
