KYN28A-12(GZS) MV Switchgear Fittings - Interlocking Device, 5VACY.239.010

EXP00000338
Delivery:
FOB
Quantity:
Contact Now
add to cart

Specification Code:5VACY.239.010

Specification Description:Interlocking device (5VACY.239.010) drawing

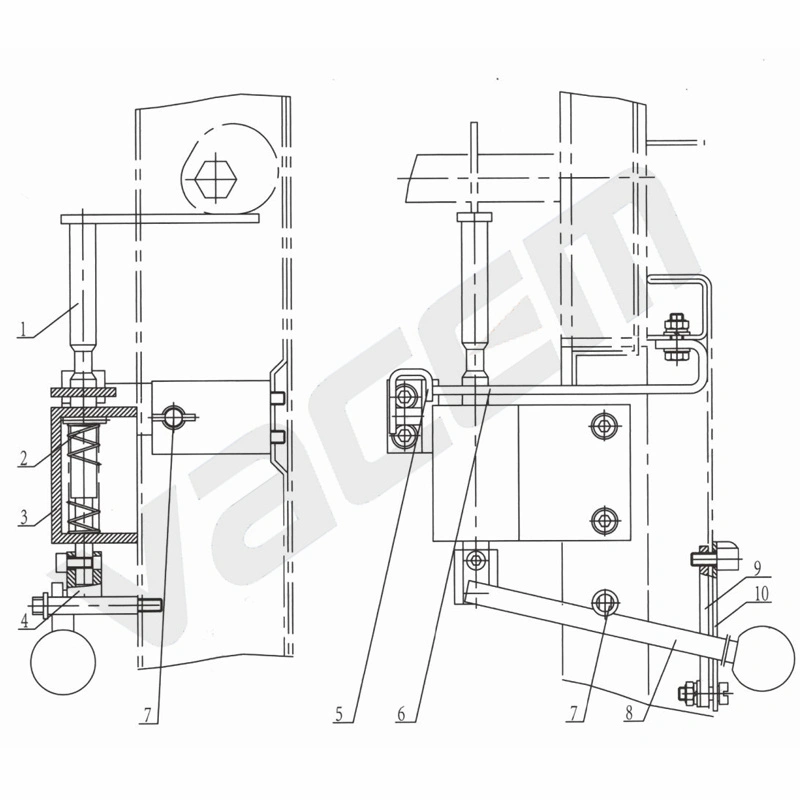

Interlocking device (5VACY.239.010) drawing

Introduction:
After improvement, if the underside door is opened, the earthing switch can' t be opened and the handcart can't be pushed into working position. The correct operation steps : close the underside door first, then open earthing switch, so that the handcart can be pushed into working position from testing position , then open earthing switch,so that the handcart can be pushed into working position safely.

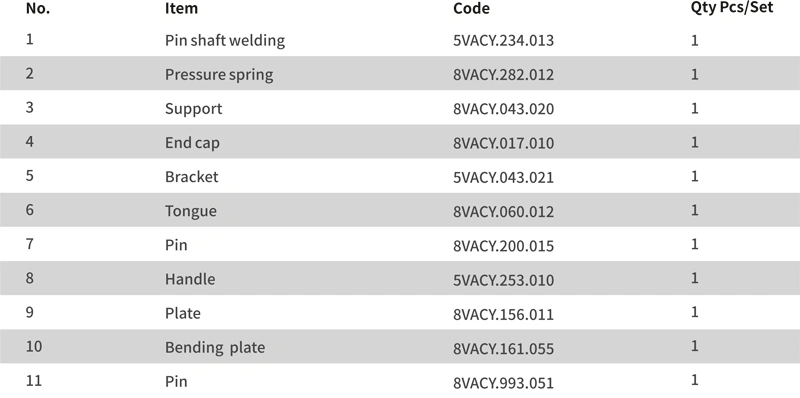

Interlocking device (5VACY.239.010) assembly sheet
