The hydraulic transport vehicle

In order to meet customers' demand, we developed the upgrade trolley based on the working principals, which is more easy to operate, with easy structure, widely used, save time and labor.

Operating instructions:

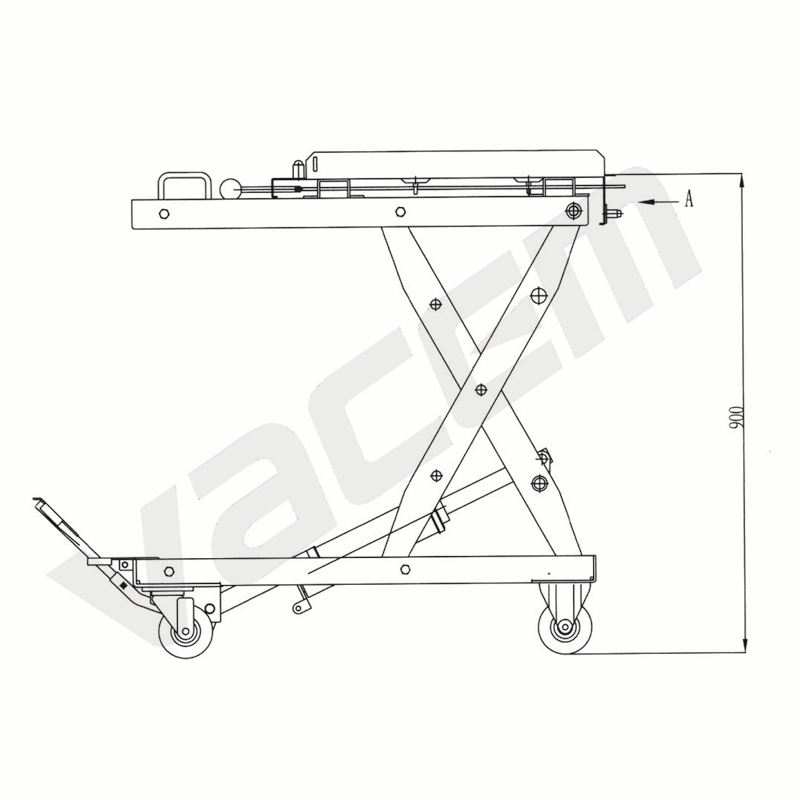

Minium height of the trolley 320mm,maximum height 900mm,weight capacity ≤ 300Kg
Operation Instruction :
1. Put the VCB on the trolley pallet ,step the pedal to rise to the suitable height;
2. Push the trolley by directional and undirectional wheels to the cabinet ,and adjust the height of trolley by step and the oil-return step, make the trolley lever and switchgear mid-partition in the same horizontal position(Note:when the oil-return step more harder, the handcart will go down more quickly.);
3. Push the trolley from the switchgear direction to make the trolley lever insert in mid-partition guide hole, and the lever on the trolley will lock the trolley and switchgear ,to make it fixed automatically ,and push the VCB through guide rail into switchgear;
4. Fluctuate trolley lever to withdraw out the trolley.
