Category
KYN61-36(40.5) MV Switchgear Fittings - 35kV Earthing Switch Operation Mechanism Interlocking Device, 5VACY.577.1003/5VACY.577.1003.1
EXP00000433
Delivery:
FOB
Quantity:
Specification Code:5VACY.577.1003/5VACY.577.1003.1
Specification Description:(used for bi-directional bevel gear operation)
36kV Earthing switch operation mechanism interlocking device

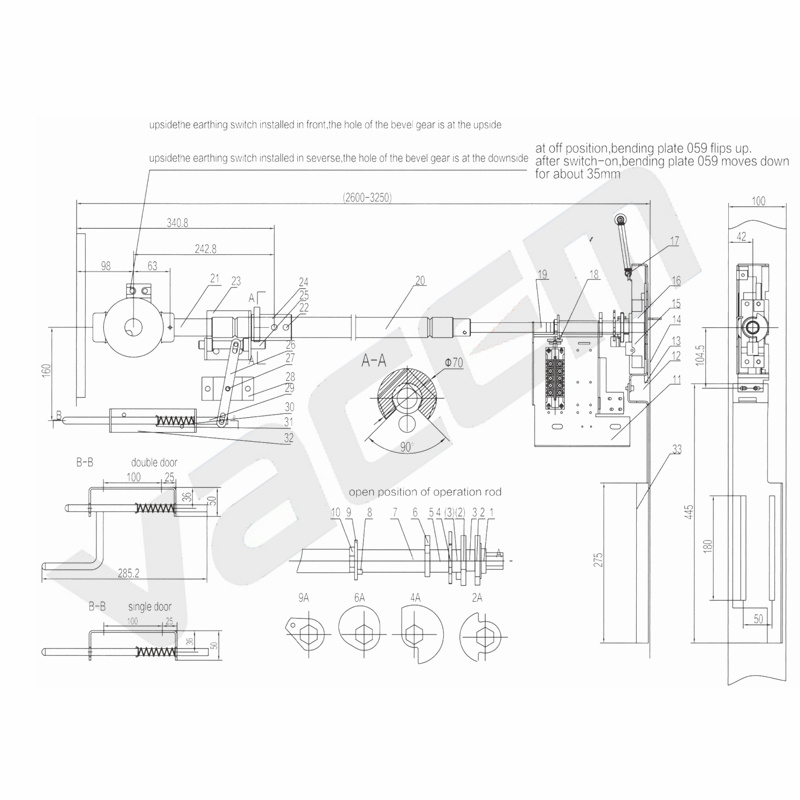

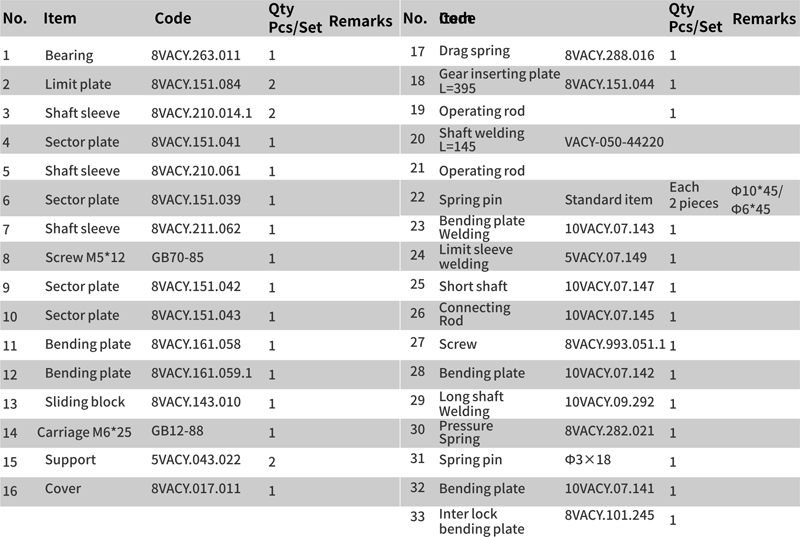

(used for bi-directional bevel gear operation)5VACY.577.1003/5VACY.577.1003.1 assembly drawing
Note: Match with JN22B earthing switch and VZN85 and other similar breakers
