KYN61 MV Switchgear Fittings - Earthing Interlocking Device, 11VACY.03.260(KYN61)
EXP00000427
Delivery:
FOB
Quantity:
Specification Code:11VACY.03.260
KYN61 earthing interlocking device (11VACY.03.260)
Note: Matched with JN22 earthing switch

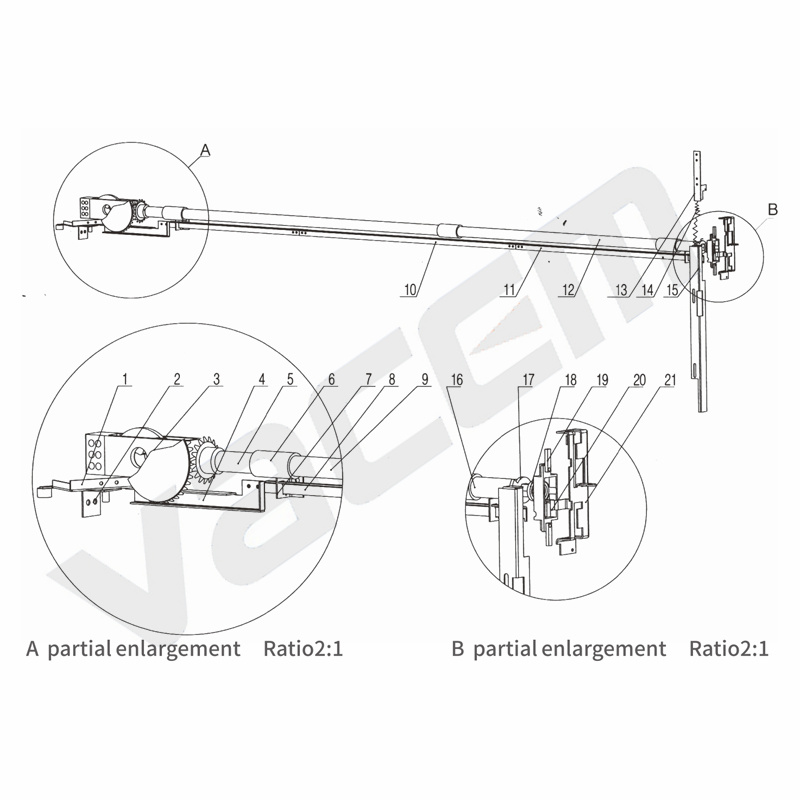

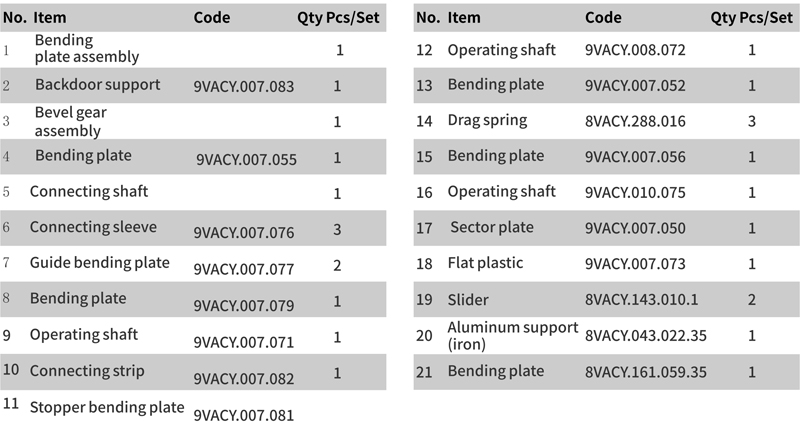

KYN61 earthing interlocking device assembly sheet
Note: Item No.3 bevel gear is assembled together with JN22 grounding switch, the interlock mechanism dose not include the bevel gear.
