KYN28A-12(GZS) MV Switchgear Fittings - Earthing Switch Operation Mechanism Interlocking Device, 5VACY.363.010 (Used for the Transmission Operation of Crank Arm)

Specification Code:5VACY.363.010

Specification Description:(used for the transmission operation of crank arm)

Earthing switch operation mechanism interlocking device

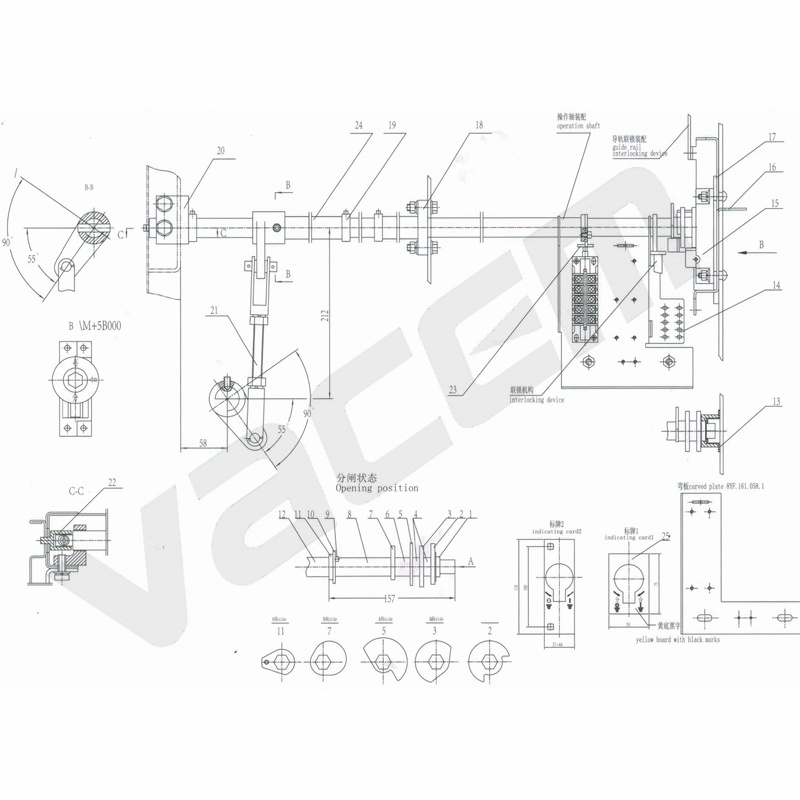

(used for the transmission operation of crank arm)5VACY.363.010 assembly drawing

Earthing switch operation mechanism interlocking device

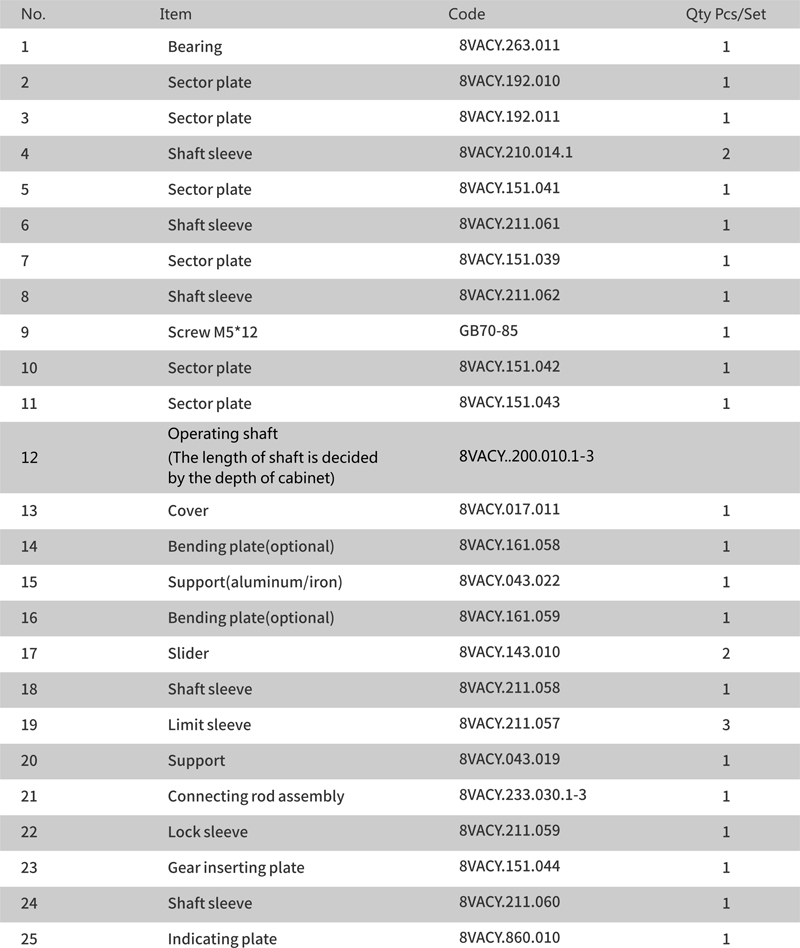

(used for the transmission operation of crank arm)5VACY.363.010 assembly sheet

Note: Item No.12, the shaft with 1430mm is matched for normal cabinet with 1450mm depth(not including the door),please specify other cabinet depth accordingly.

Item No.14,normally is 8VACY.161.058.1. When need to insall locking electromagnet, please use 8VACY.161.058. When need to install both locking electromagnet and interlock mechanism, please specify.

Item No.25, indicating plate has two types for choice, customer can choose indicating plate 1 or indicating plate 2.
