Secondary Plug Socket

JZ-58

Product Name：Secondary Plug Socket
Rated Voltage：AC380V、DC220V
Rated Current：AC16A, DC10A
Mechinical Life：2000 Times

Quantity:

Contact Now

add to cart

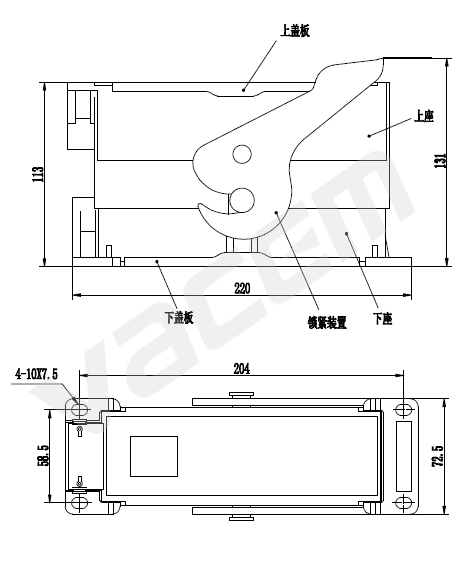

JZ-58 secondary plug socket (improved) is a self-developed product with international advanced level based on absorbing the product technology of ABB and Siemens. It is GZSI (with VS1, VD4) and other KYN28-12 It is used for connecting the secondary line of the middle-mounted high-voltage switchgear. Its performance conforms to GB3960-91 (3~35KV AC metal-enclosed switchgear).

Product Code：VZ58.01.001

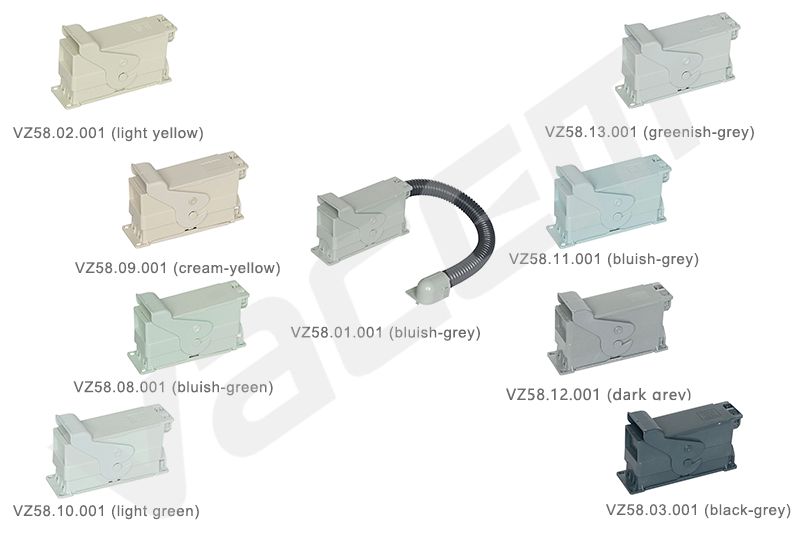

Specification：JZ-58(58 Pins，mulit-color optional，default color bluish-grey as picture)
VZ58.01.001 (bluish-grey)
VZ58.02.001 (light yellow)
VZ58.03.001 (black-grey)
VZ58.08.001 (bluish-green)
VZ58.09.001 (cream-yellow)
VZ58.10.001 (light green)
VZ58.11.001 (bluish-grey)
VZ58.12.001 (dark grey)
VZ58.13.001 (greenish-grey)

The parts for Secondary Plug Socket, pls purchase in additional if you demand:

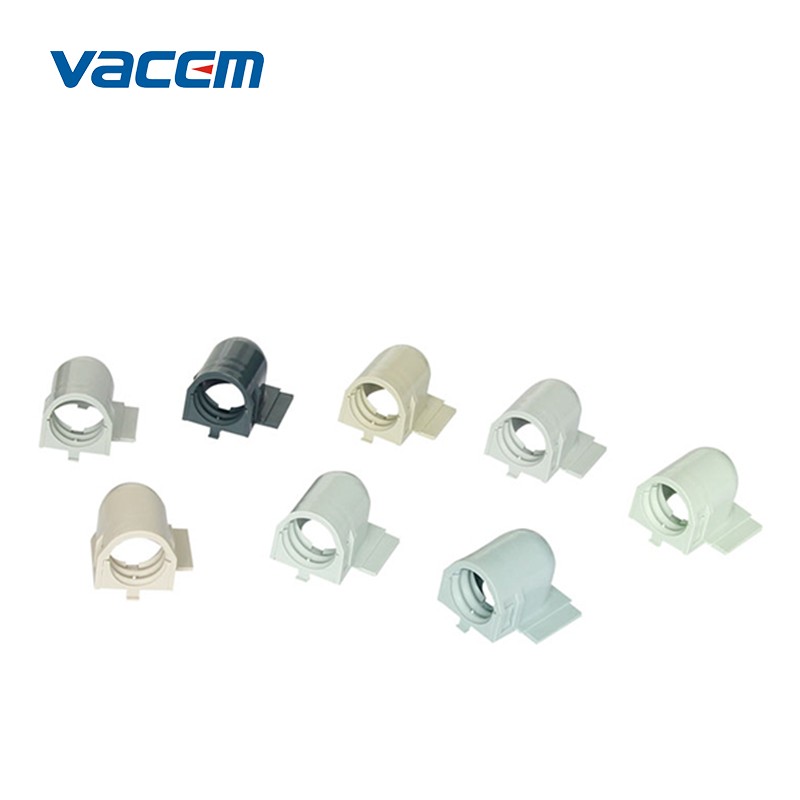

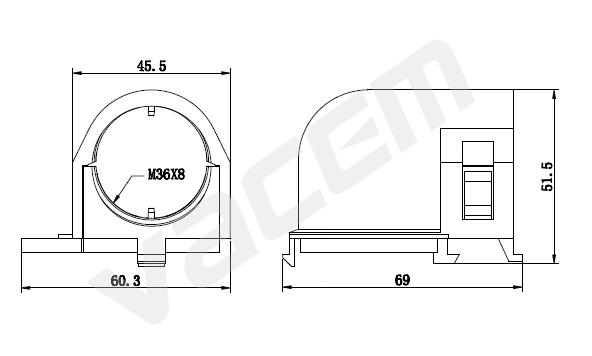

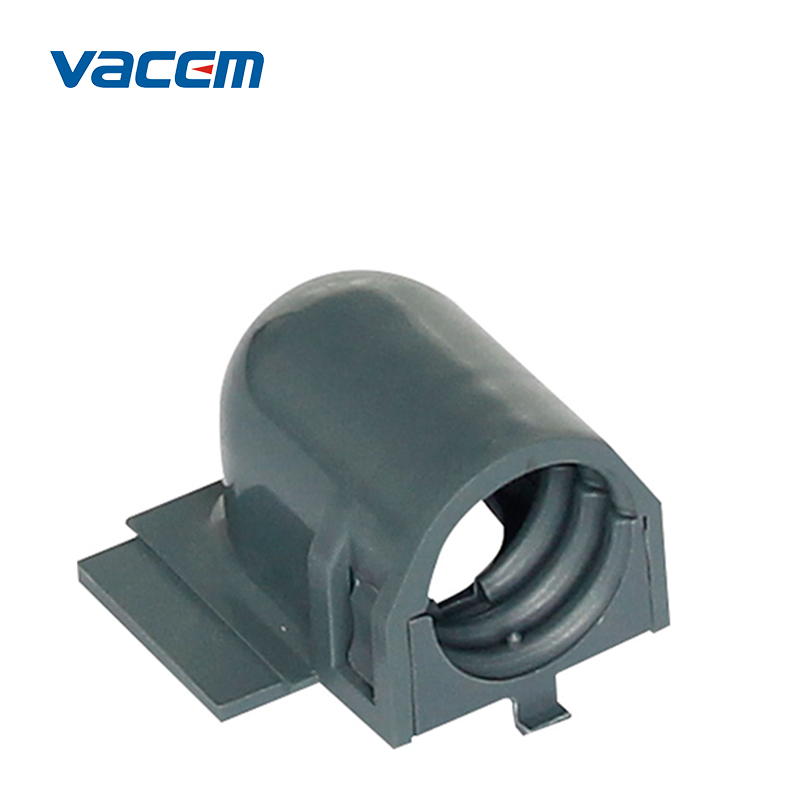

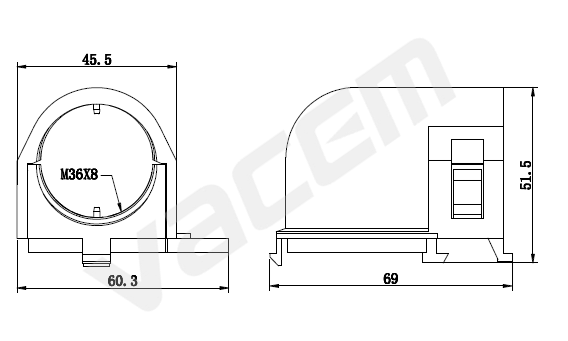

Product Name：Right Connector Product Code：VZ58.XX.002 Specification：Parts for JZ-58, default color: bluish-grey mulit-color optional: light yellow/ black-grey/ bluish-green /cream-yellow/ light green/ bluish-grey/ dark grey / greenish-grey

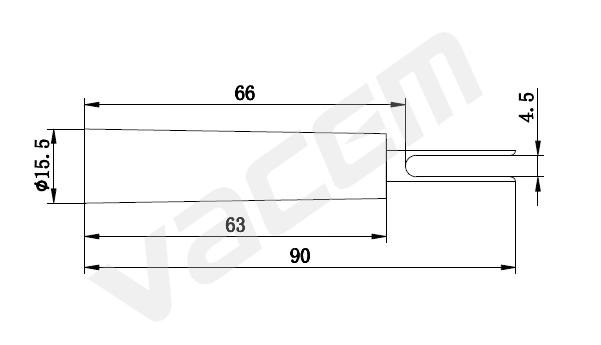

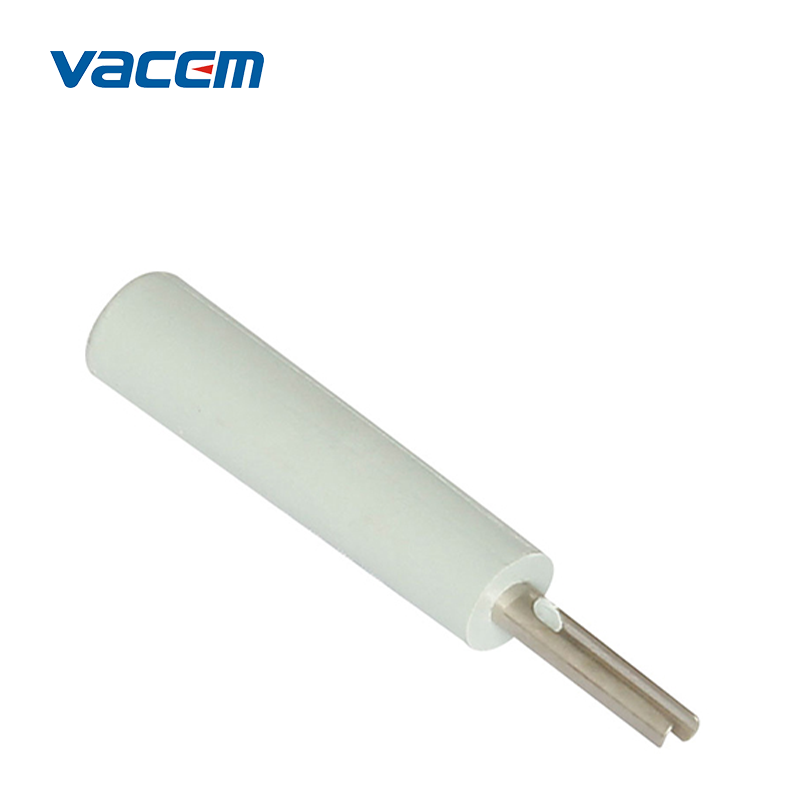

Product Name：Pin Tool Product Code：VZ58.XX.003 Specification：tool for plug & pull the pins of secondary plug socket JZ-58.

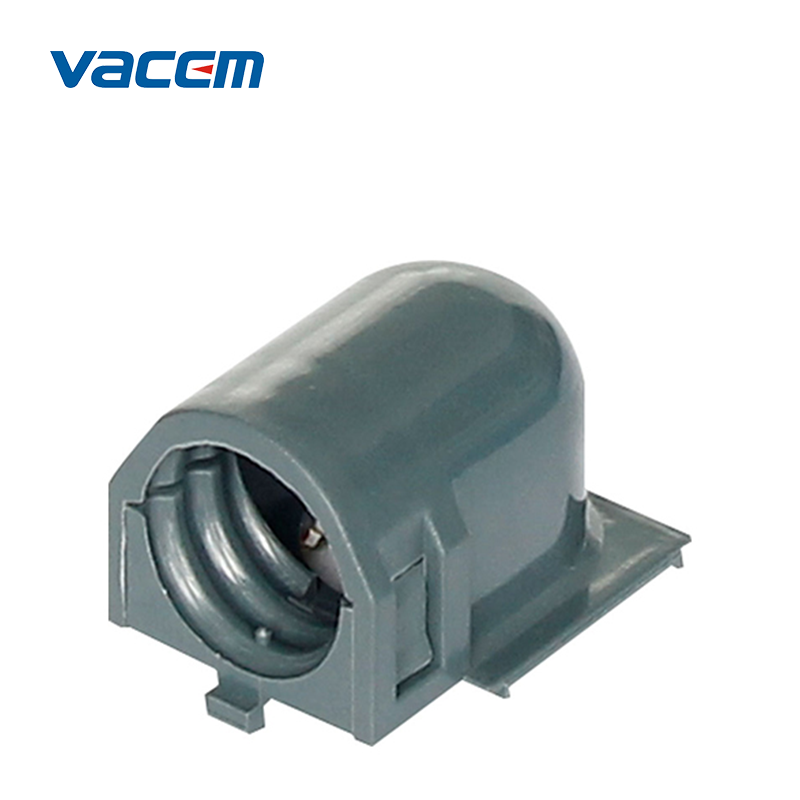

Product Name：Left Connector Product Code：VZ58.03.004 Specification：Parts for JZ-58,black-grey

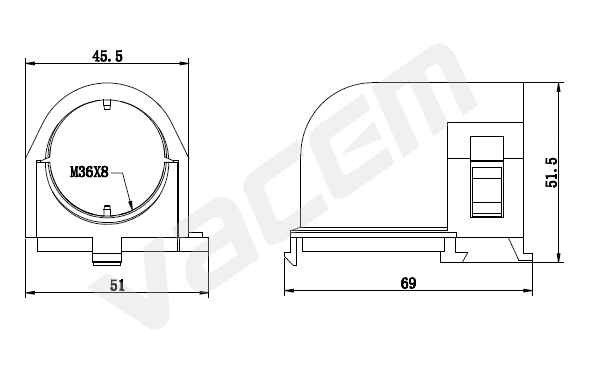

Product Name：Narrow Right Connector Product Code：VZ58.03.008 Specification：Parts for JZ-58,black-grey

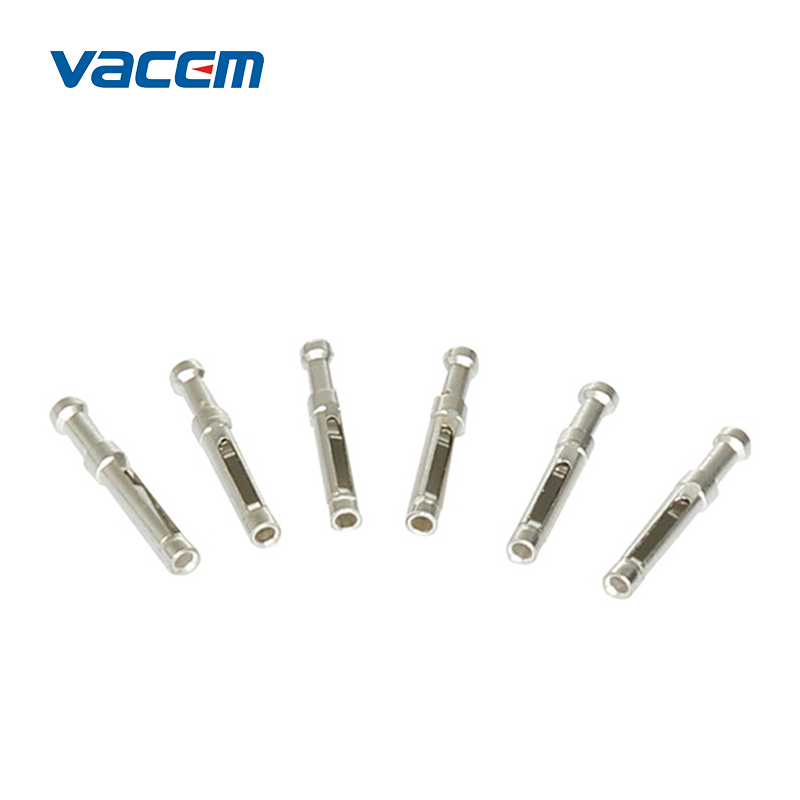

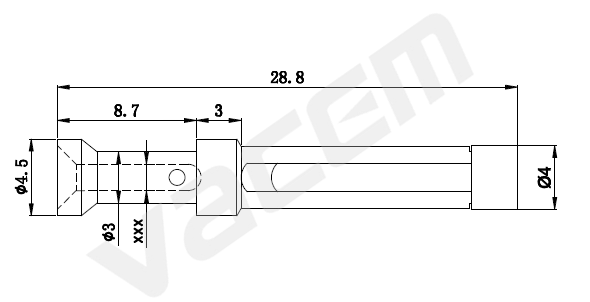

Product Name：Female Pin Product Code：VZ58.XX.005 Specification：Parts for JZ-58

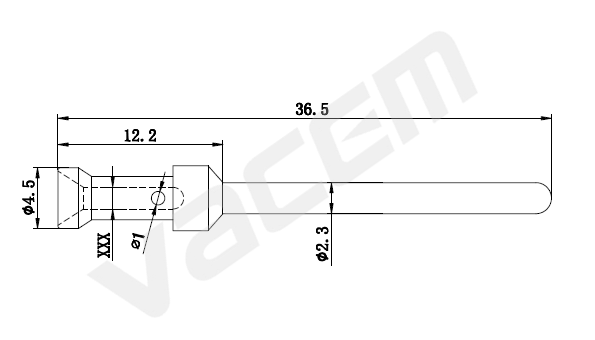

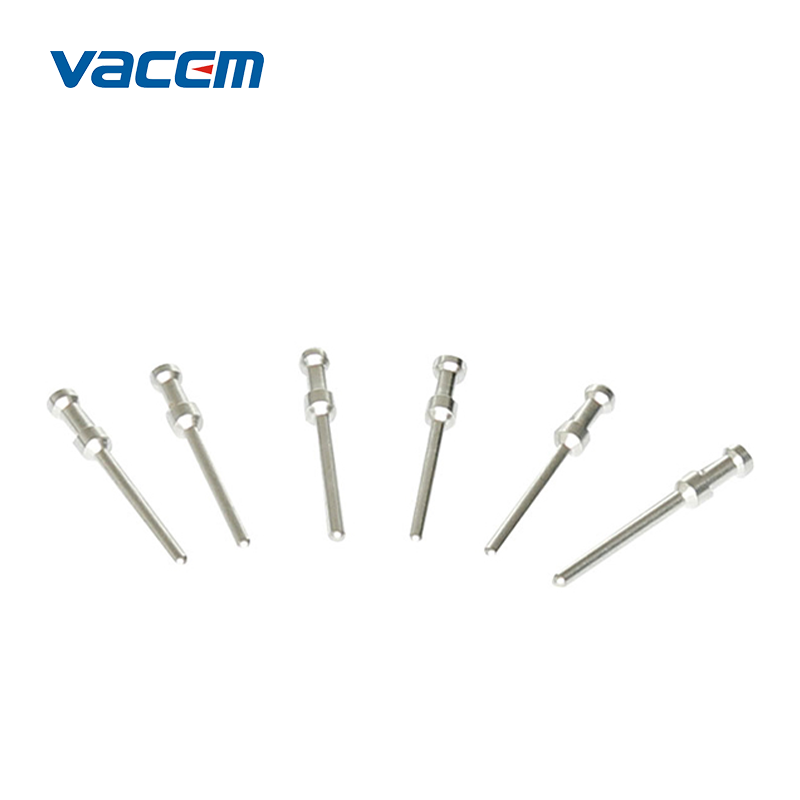

Product Name：Male Pin Product Code：VZ58.XX.006 Specification：Parts for JZ-58
