Preinstalled Substation (American),ZGS13-630/12

1.Fully  insulated,fully  sealed,free  maintenance,reliable  personal  safety  guarantee;

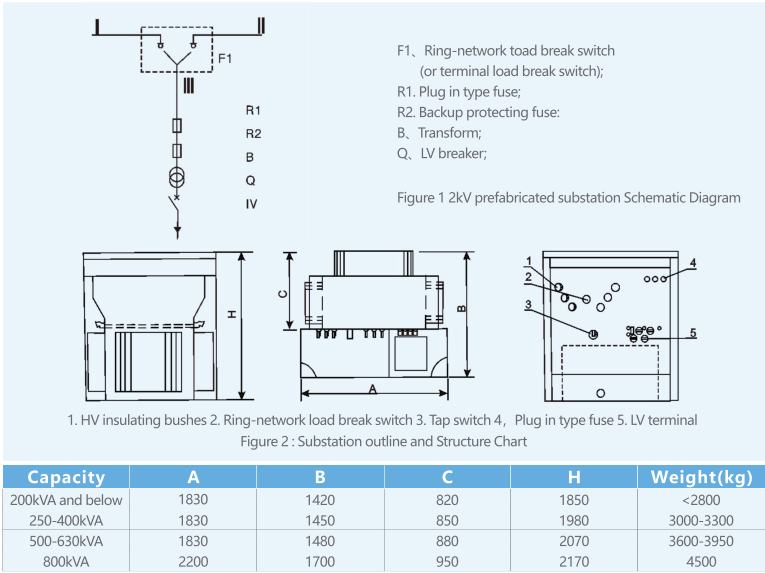

2.Compact structure,the volume is only  1/3-1/5 of European type with the same capacity:the  height is only  1,5,not blocking   sight;
3.It uses sub-box structure to avoid the oil pollution in transformer mailbox;
4.High-voltage side  uses full  range of double fuse  protection,greatly  reducing  costs;

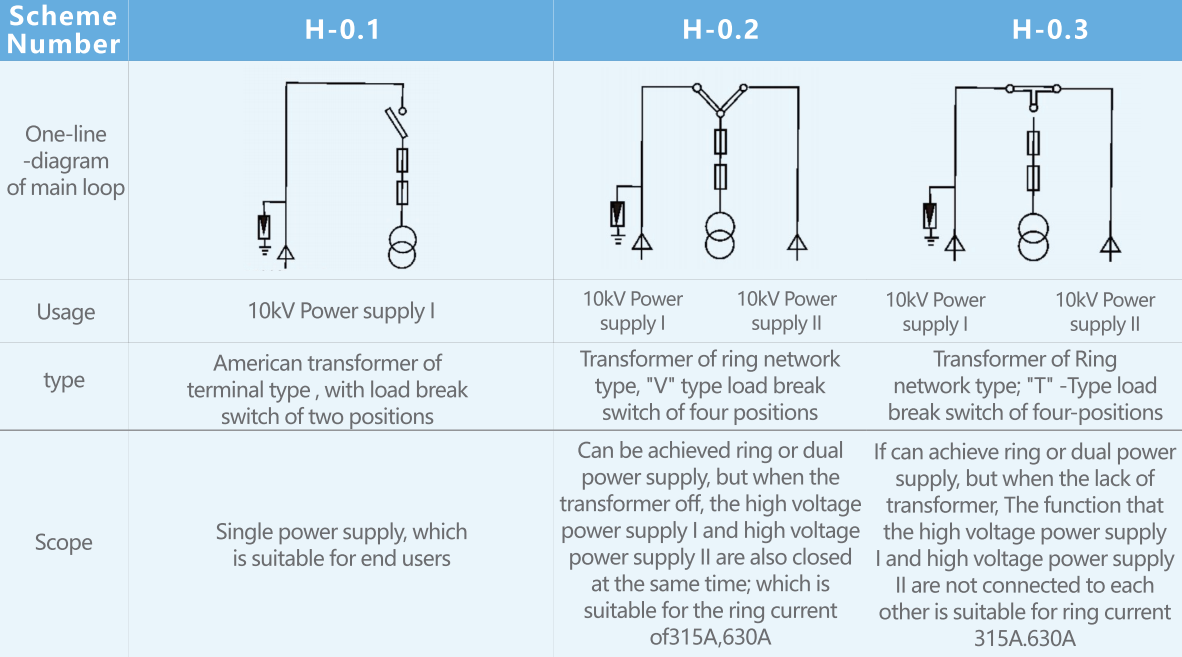

5.It can be used in loop network and also in terminal,and the cable head is urgently pluggable under 200A load current;
6.The  box adopts  honeycomb-type double  layer composite  board,with the functions of thermal  insulation and  heal dissipation,and the technology is the latest patent developed by the company.
7.Low voltage side can be installed undervoltage controller,when there is abnormal voltage in the system,the low voltage side can be quickly removed;
8.The oil-immersed load break switch or SF6 load break switch on the high-pressure side can be automaticallyupgraded to  lay  the  foundation  for the  distribution  network  automation.

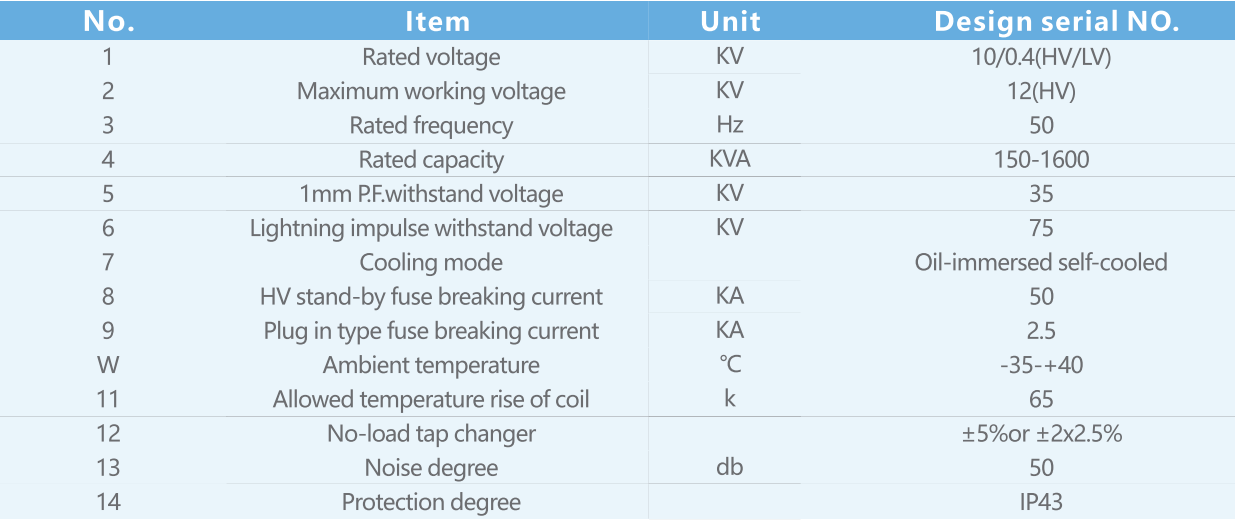

The Technical Specifications of this American Preinstalled Substation define its electrical performance and mechanical parameters for compact distribution applications. The ZGS13-630/12 Pad Mounted Transformer features a fully insulated, fully sealed, maintenance-free design that reliably ensures personal safety. This Compact Substation 10/0.4kV offers a compact structure with volume only 1/3 to 1/5 of European type with the same capacity, and a height of only 1.5 meters without blocking sight lines. The American Preinstalled Substation utilizes a sub-box structure to avoid oil pollution in the transformer mailbox. The ZGS13-630/12 Pad Mounted Transformer employs full-range double fuse protection on the high-voltage side, significantly reducing costs. This Compact Substation 10/0.4kV can be used in both loop network and terminal configurations, with cable heads that are urgently pluggable under 200A load current. The American Preinstalled Substation features a honeycomb-type double-layer composite board with thermal insulation and heat dissipation functions. The ZGS13-630/12 Pad Mounted Transformer can be equipped with an undervoltage controller on the low-voltage side for rapid removal during abnormal voltage conditions. Each Compact Substation 10/0.4kV is rated at 10/0.4kV with a capacity range of 150-1600kVA.
