1.High-voltage switchgear,transformer,low-voltage switchgear,trinity complete:
2.Perfect protection for high and low voltage,safe and reliable operation,easy maintenance;
3.Small occupation of land,low investment,short production cycle,easy movement;
4.Flexible wiring scheme;
5.Unique structure:unique honeycomb-structure double-layer (composite board)shell is solid,heat-insulated thermorytic and ventilated,beautiful,with high degree of protection,the shell material can be selected among stainless steel titanium alloy,aluminum alloy,cold-rolled plate,color steel plate:
6 Variety:general type,villa type,compact and other styles:
7.High-voltage loop network cabinet can be equipped with network automation terminal (FTU)to achieve reliable detection of short-circuit and single-phase ground fault,with"four shake"function,easy for network automation  upgrade.

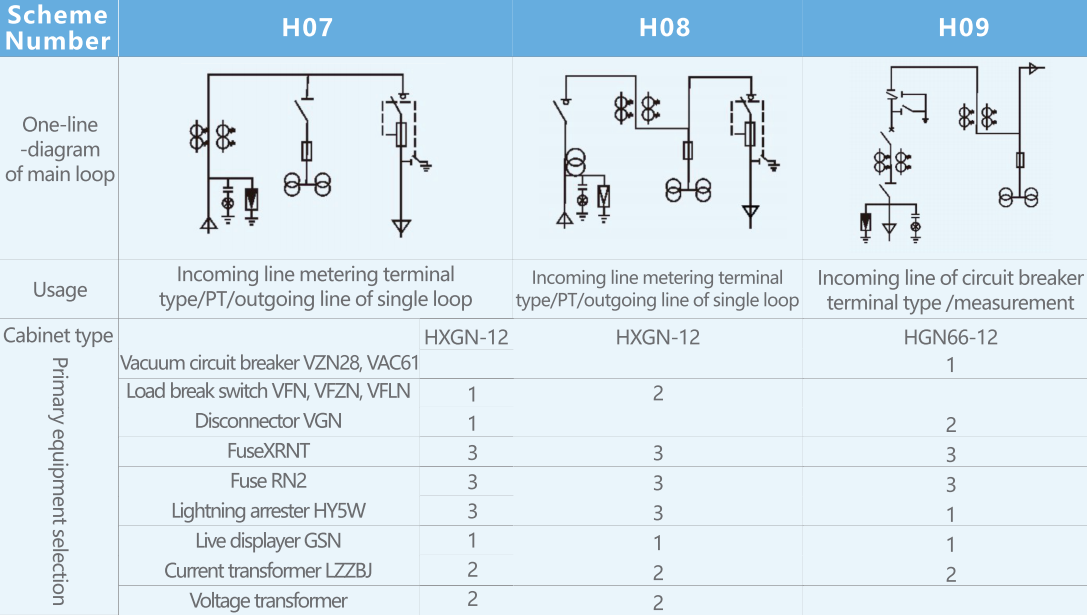

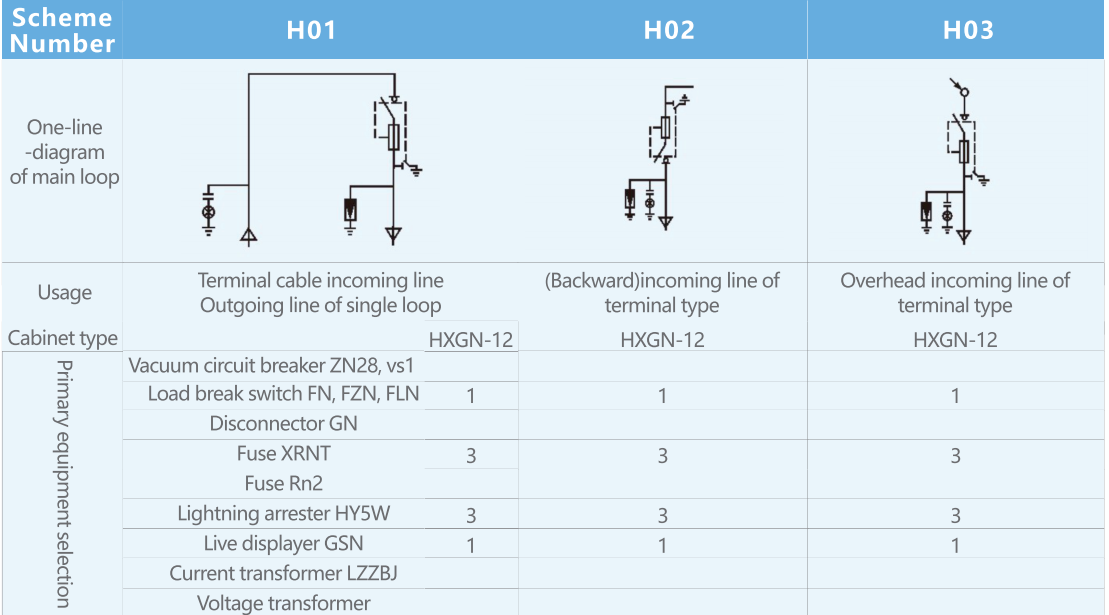

Attached table i Typical high-voltage solutions

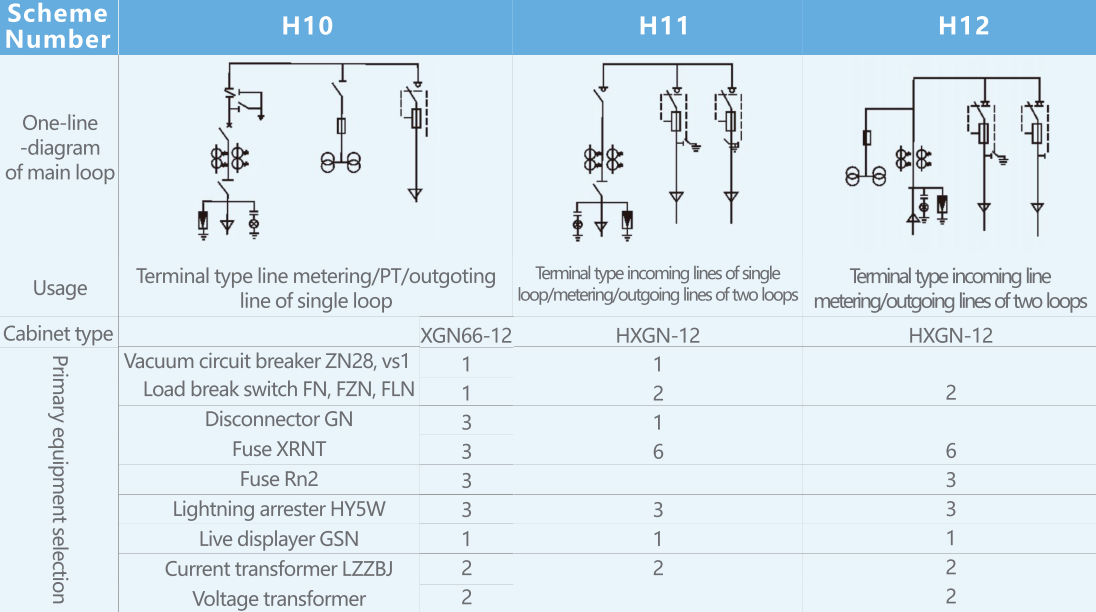

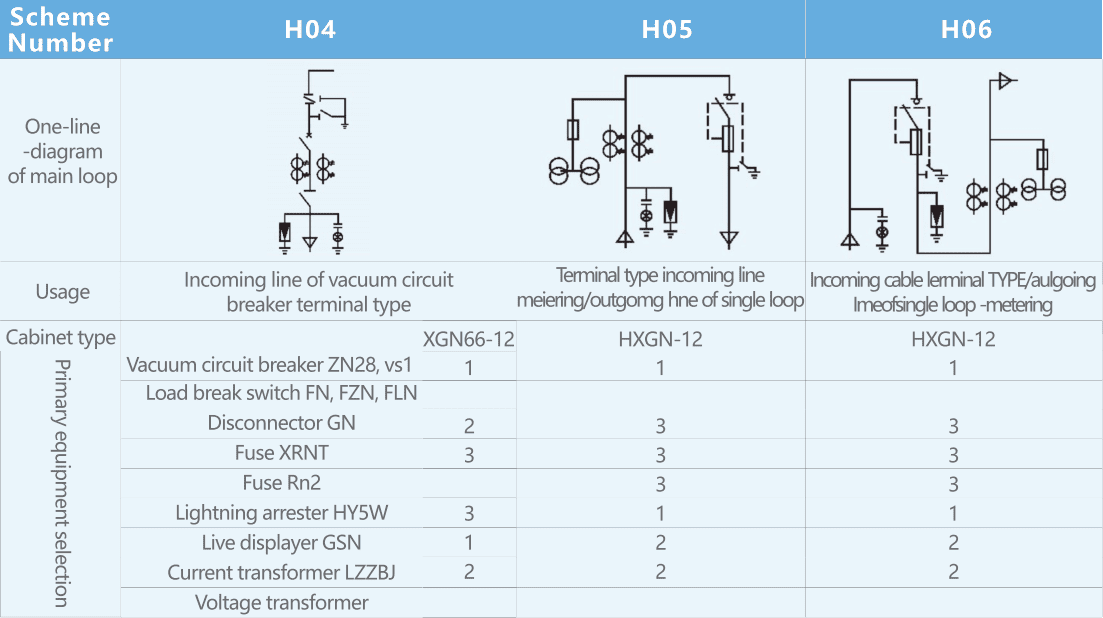

Attached table 1 The high-voltage typical scheme (continued)



Attached table i Typical high-voltage solutions

Attached table 1 The high-voltage typical scheme (continued)

The Technical Specifications of this European Preinstalled Substation define its electrical and mechanical parameters for compact distribution applications. The YB-12/0.4 Compact Substation integrates high-voltage switchgear, transformer, and low-voltage switchgear in a complete three-in-one assembly, providing comprehensive power distribution in a single unit. This Pad Mounted Transformer Substation features perfect protection for high and low voltage systems, ensuring safe and reliable operation with easy maintenance. The European Preinstalled Substation offers small land occupation, low investment, short production cycle, and easy movement, making it ideal for urban distribution networks. The YB-12/0.4 Compact Substation features a unique honeycomb-structure double-layer composite board shell that is solid, heat-insulated, and ventilated, with high protection degree. This Pad Mounted Transformer Substation is available in various styles including general type, villa type, and compact configurations. The European Preinstalled Substation can be equipped with a network automation terminal (FTU) on the high-voltage loop network cabinet, enabling reliable detection of short-circuit and single-phase ground faults with"four remote"functionality. Each YB-12/0.4 Compact Substation is rated at 12/0.4kV and supports flexible wiring schemes.
