Auxiliary Switch

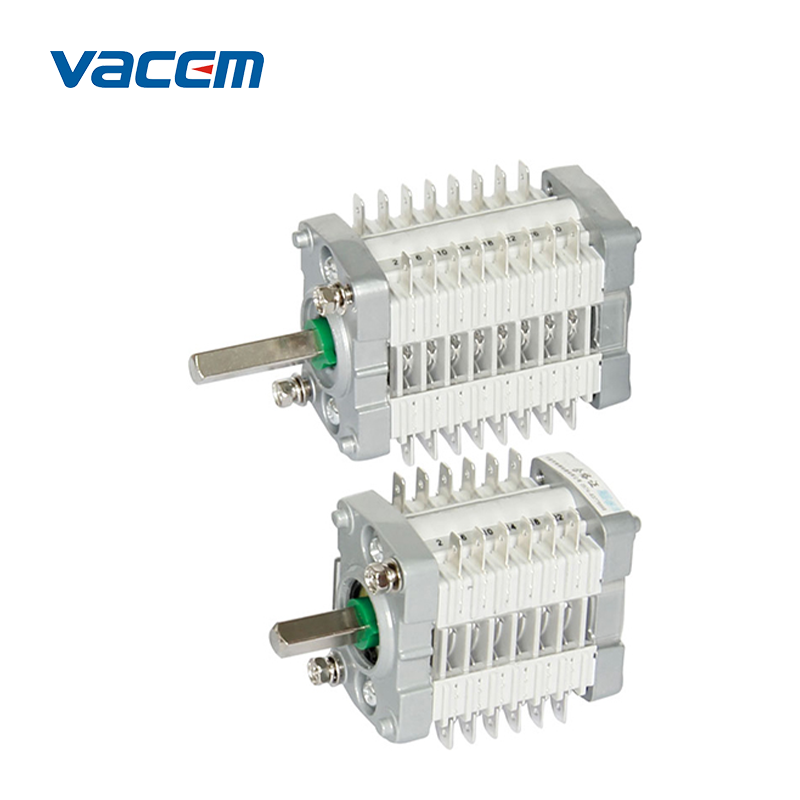

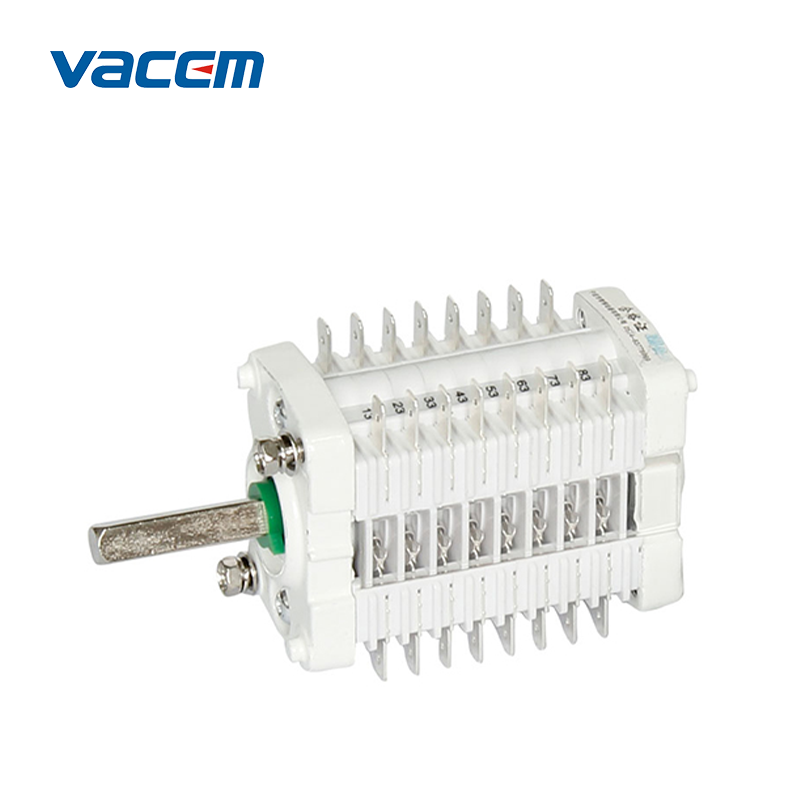

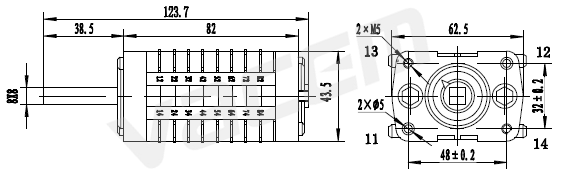

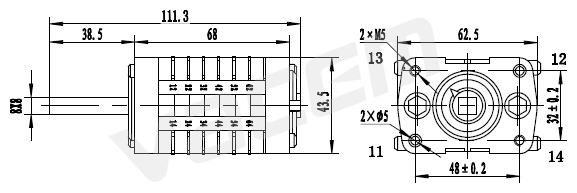

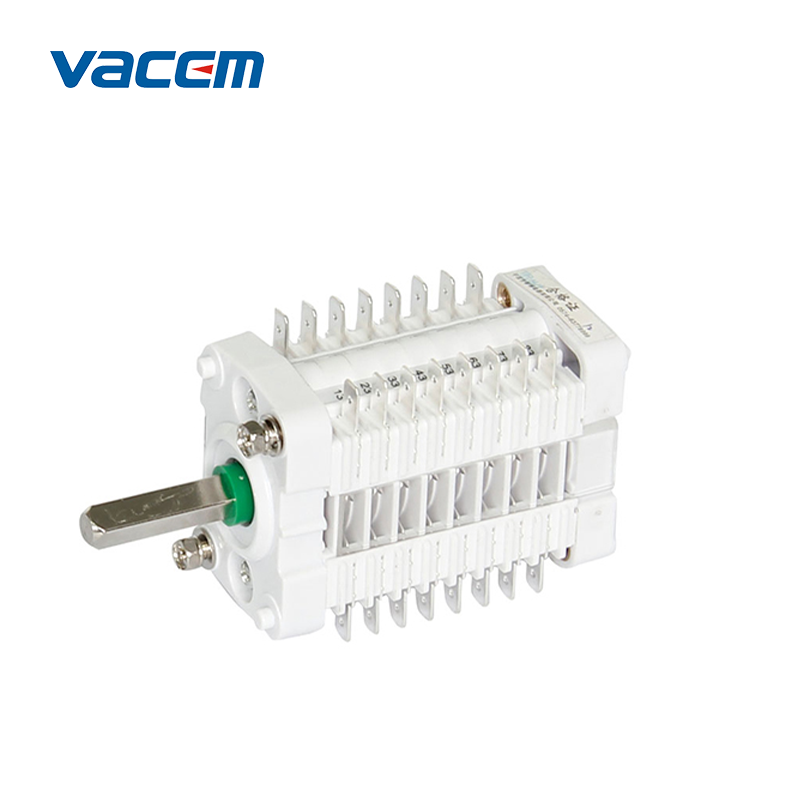

F10（8NO&8NC）normal type
F10□ II/W2 series auxiliary switch is a domestic product developed by introducing the German Siemens technology, which is suitable for controlling the closing, opening, interlocking, and the second circuit of the signal circuit of various high-voltage switch operating mechanisms. Widely used in VS1(ZN63)/ZN12/3AF/ZN65/CT19/CT□ and other vacuum circuit breakers and spring operating mechanisms, and can also be used as transfer switches and combination switches.
Its performance meets the requirements of GB3906-91 "3~35KV AC Metal-enclosed Switchgear" and Q/XKO05-1999 "Technical Conditions" of this product.
Its performance meets the requirements of GB3906-91 "3~35KV AC Metal-enclosed Switchgear" and Q/XKO05-1999 "Technical Conditions" of this product.
Quantity:

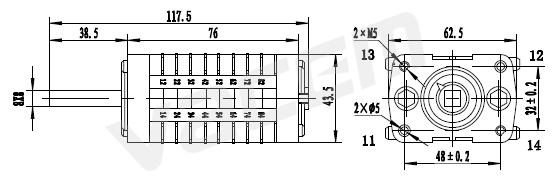

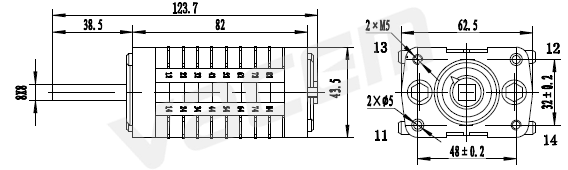

 Product Name：Auxiliary Switch Product Code：VZ16.00.001 Specification：F10（8NO&8NC）normal type |  |

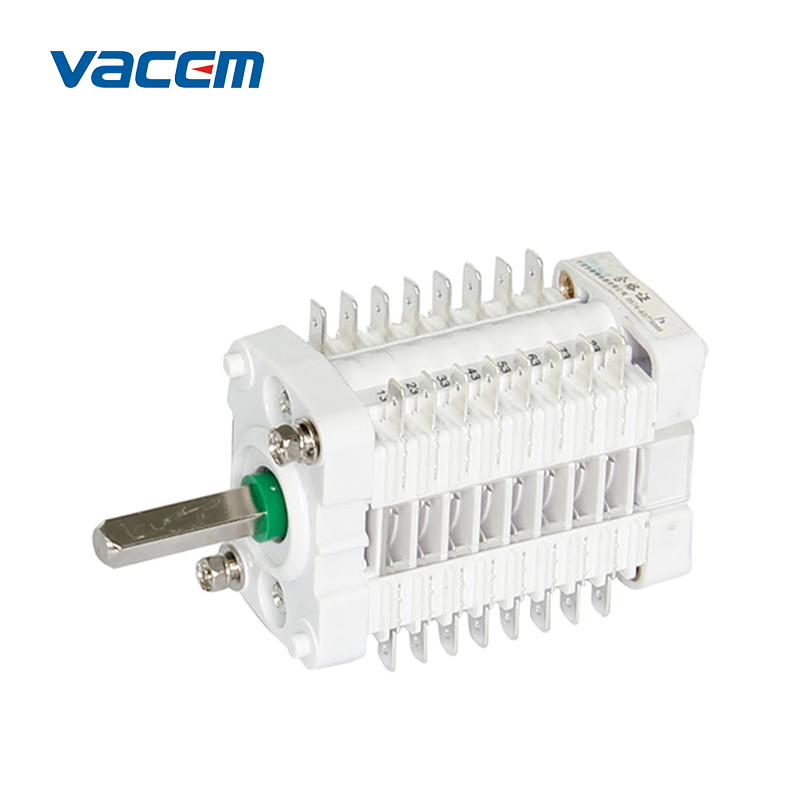

 Product Name：Auxiliary Switch Product Code：VZ16.00.004 Specification：F10(8NO&8NC) silver-grey aliuminum piece |  |
 Product Code：VZ16.00.018 Specification：F10(8NO&8NC) thinner plastic piece |  |
 Product Code：VZ16.00.063 Specification：F10(8NO&8NC) plastic silver piece |  |

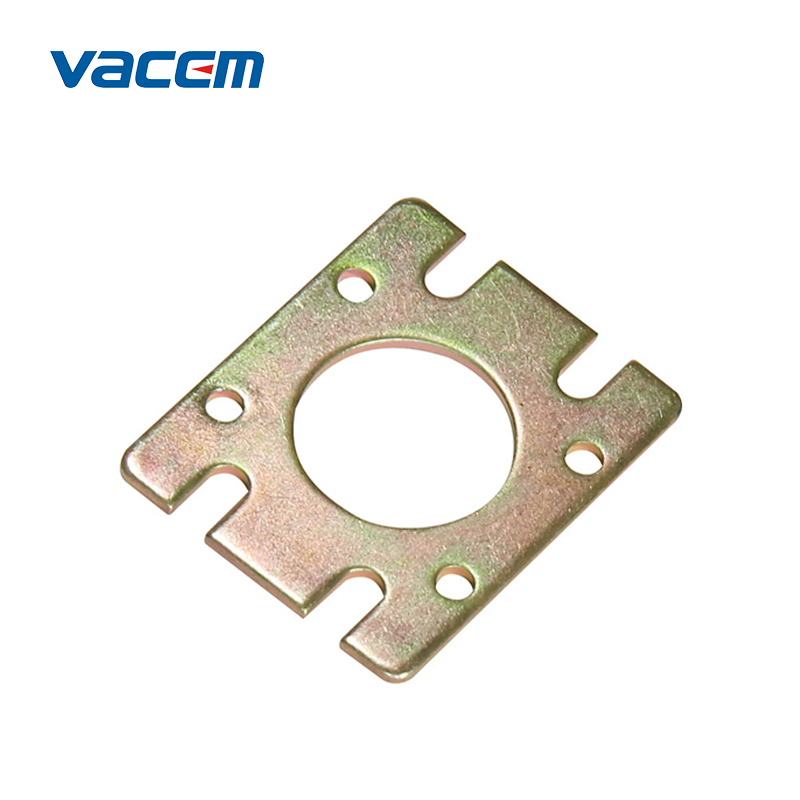

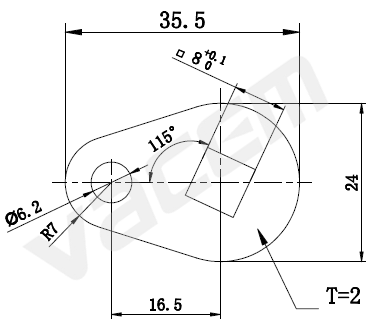

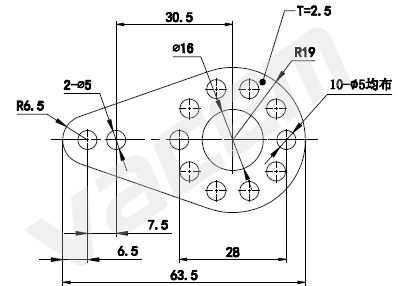

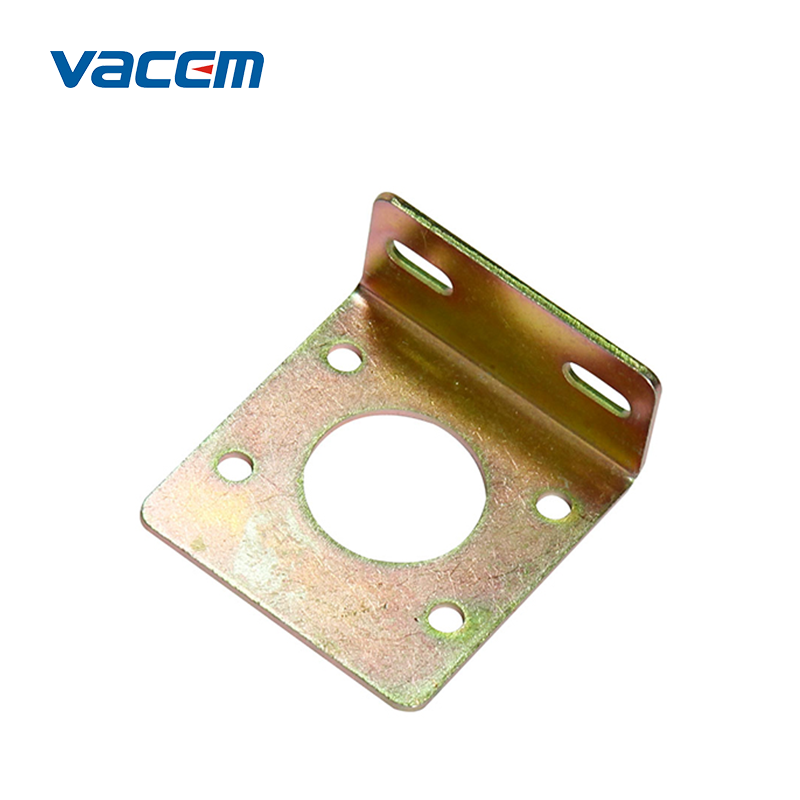

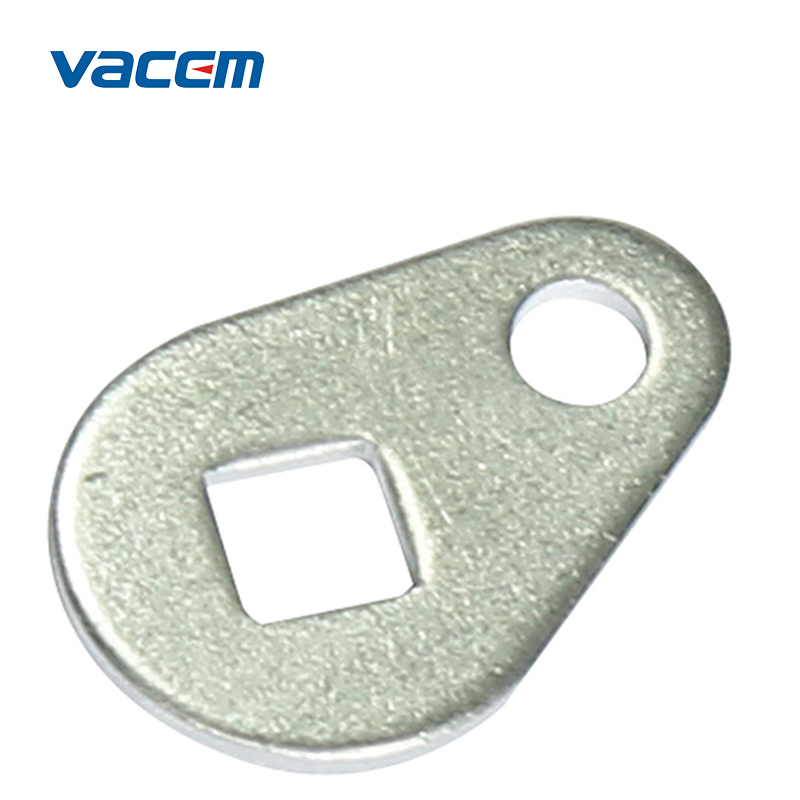

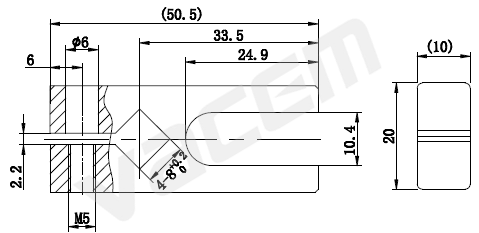

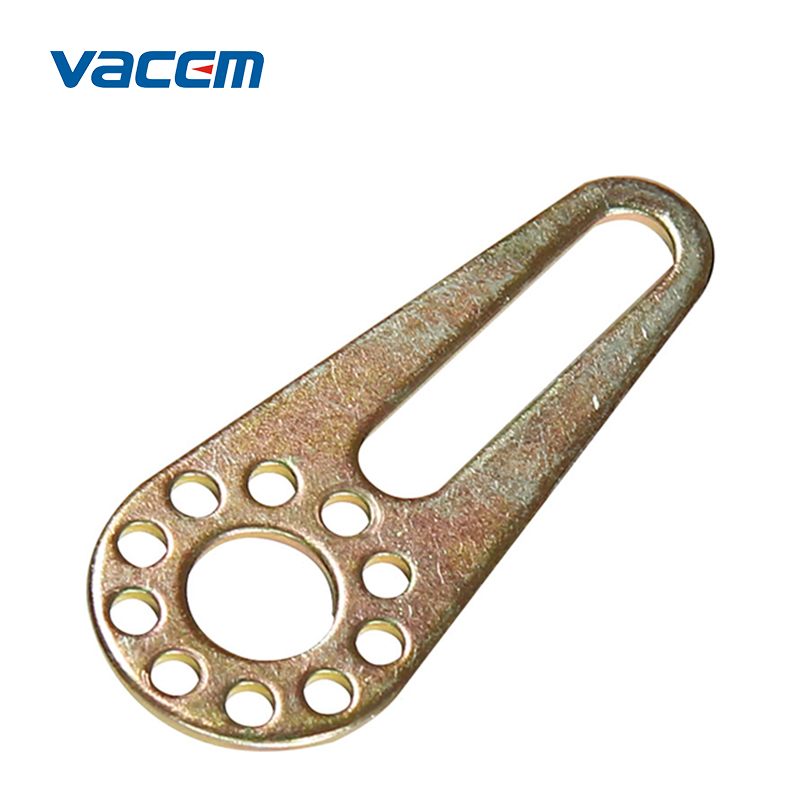

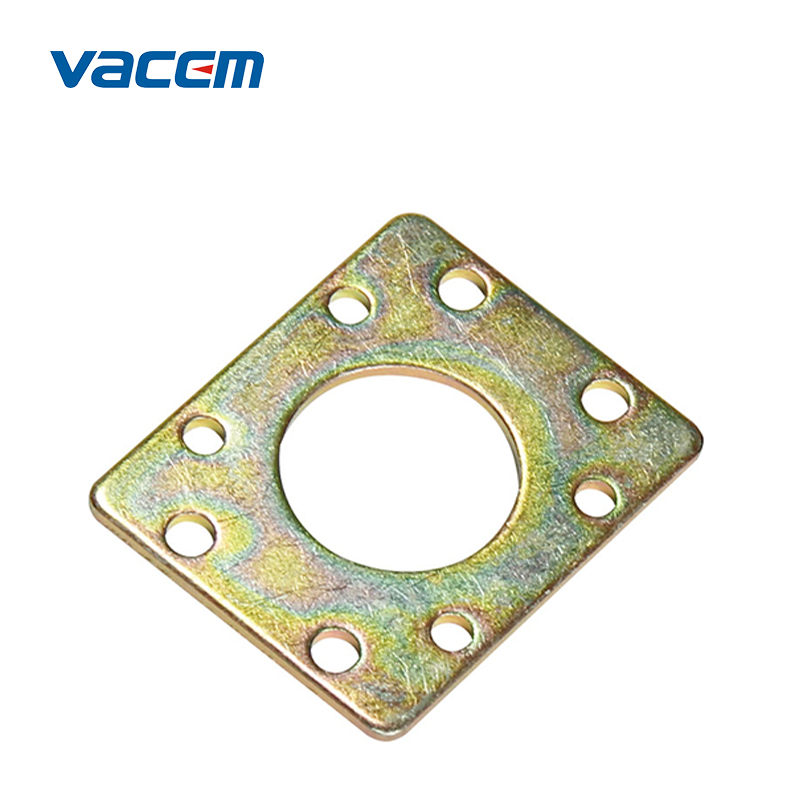

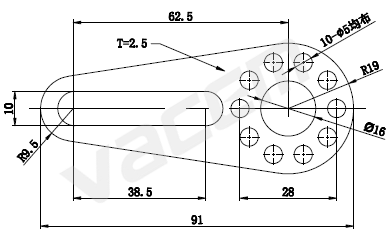

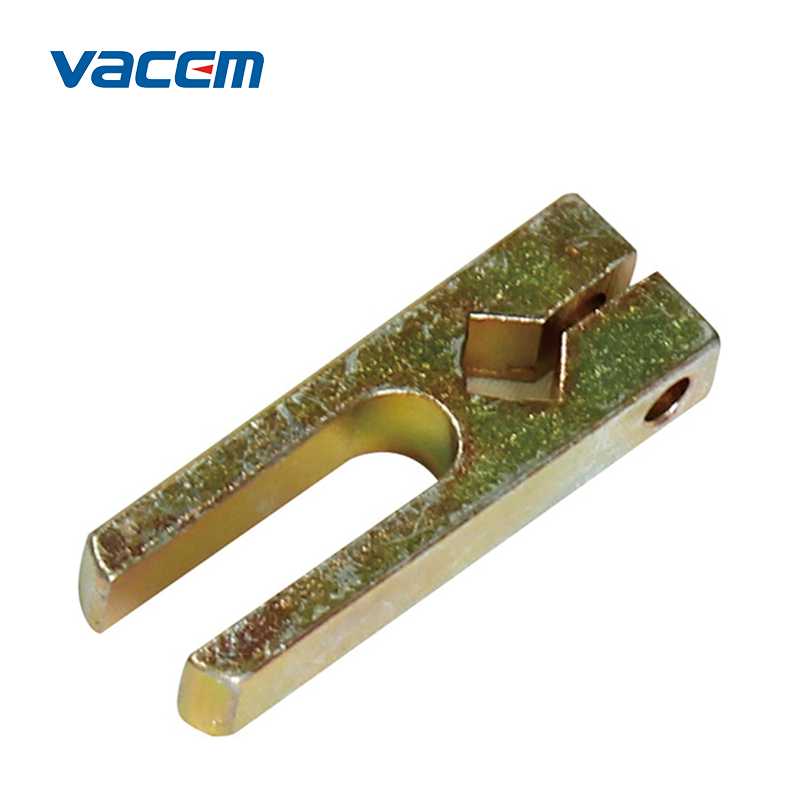

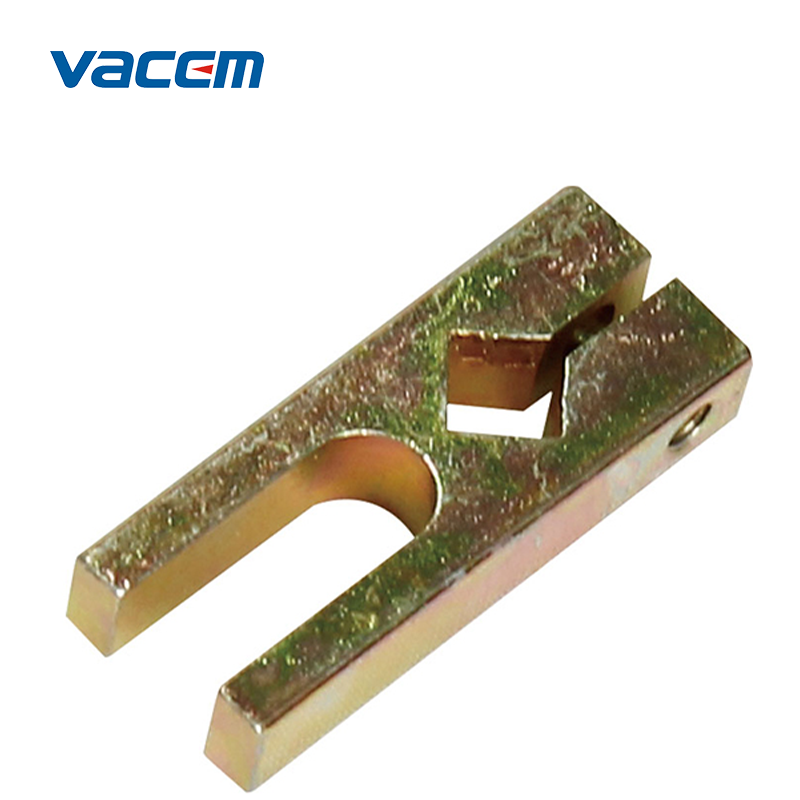

In additional if you demand:
 |  |

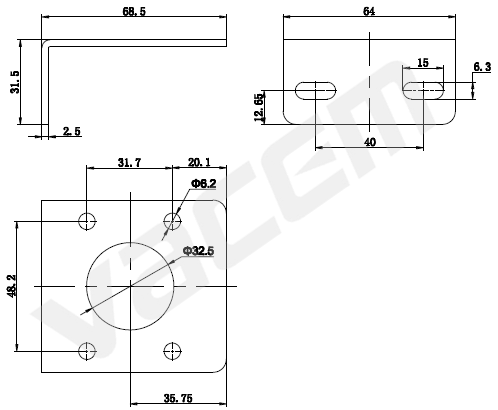

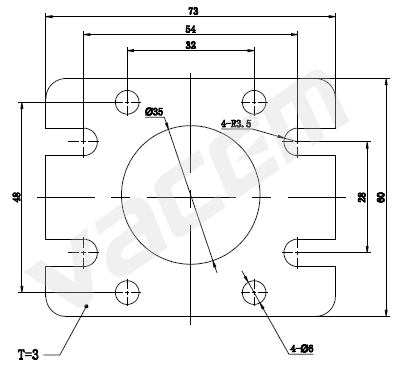

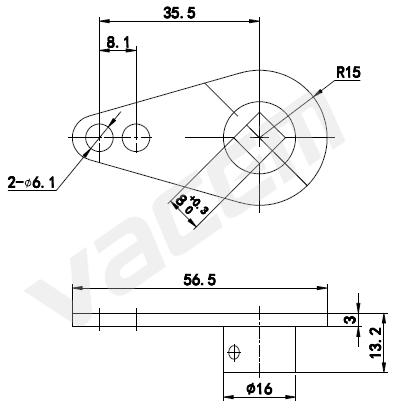

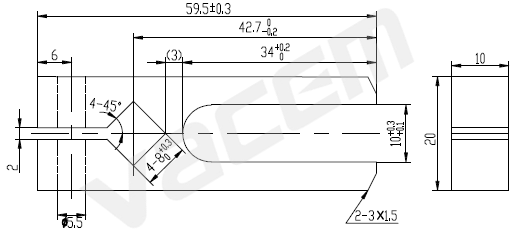

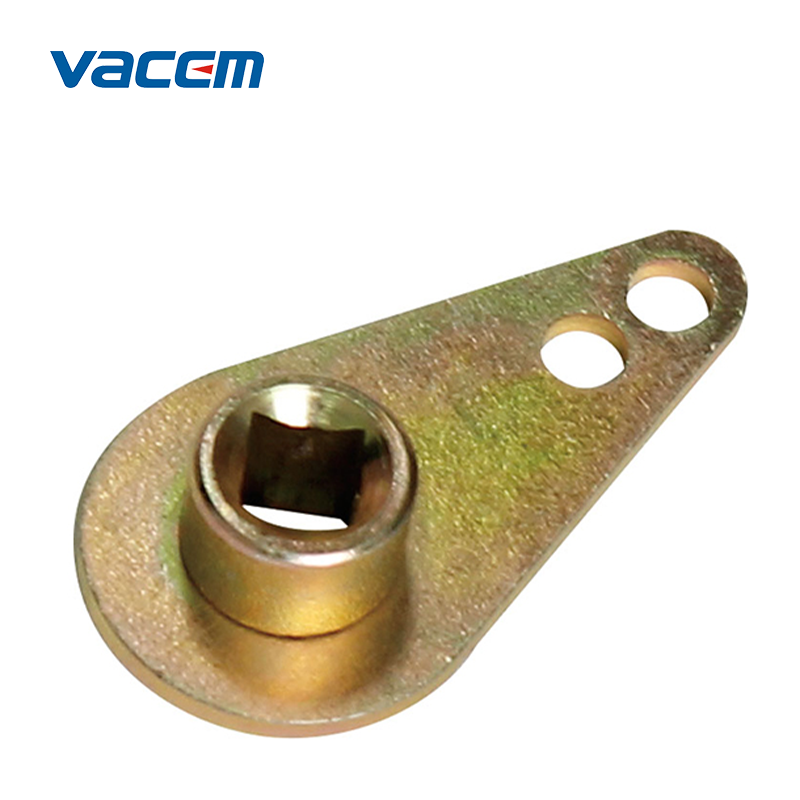

 vz-as16-f10-02 |  |
 |  |
 |  |
 |  |
 |  |
 vz-as16-f10-07 |  |
 vz-as16-f10-08 |  |
 |  |
