KYN28A-12(GZS) MV Switchgear Fittings - Shutter Mechanism, 5VACY.233.011(1000mm Mid- Placed Switchgear Cabinet)
EX5VACY.233.011
Delivery:
FOB
Quantity:
Specification Code:5VACY.233.011
Specification Description:(1000mm mid-placed switchgear cabinet)
(1000mm mid-placed switchgear cabinet)
shutter mechanism 5VACY.233.011 installation drawing
(1000mm mid-placed switchgear cabinet)

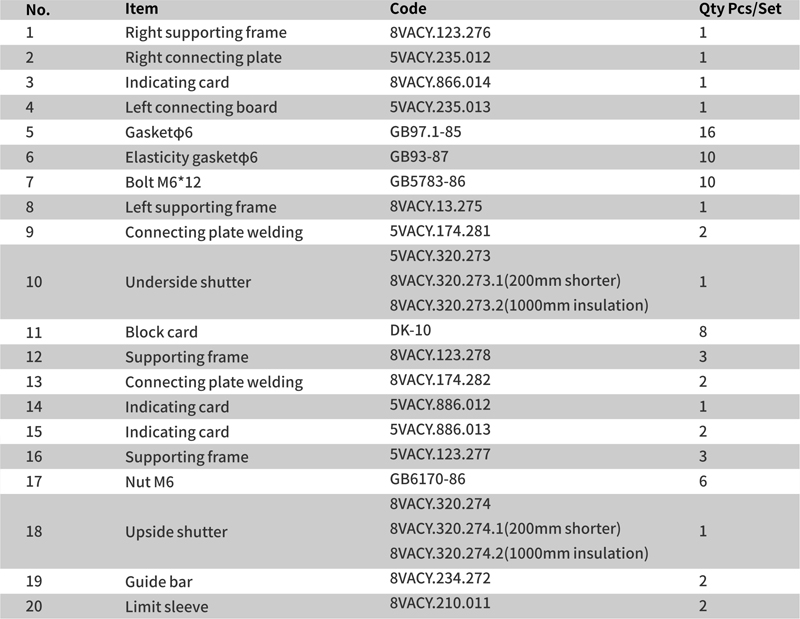

shutter mechanism 5VACY.320.011 assembly sheet
