KYN61-36(40.5) MV Switchgear Fittings - Shutter Mechanism, KYN61(Steel Wire Type)
EXP00000435
Delivery:
FOB
Quantity:
Specification Code:KYN61
Specification Description:(steel wire type)
KYN61 Shutter mechanism(steel wire type) assembly drawing
Note: Matched with VZN85 and other similar circuit breaker

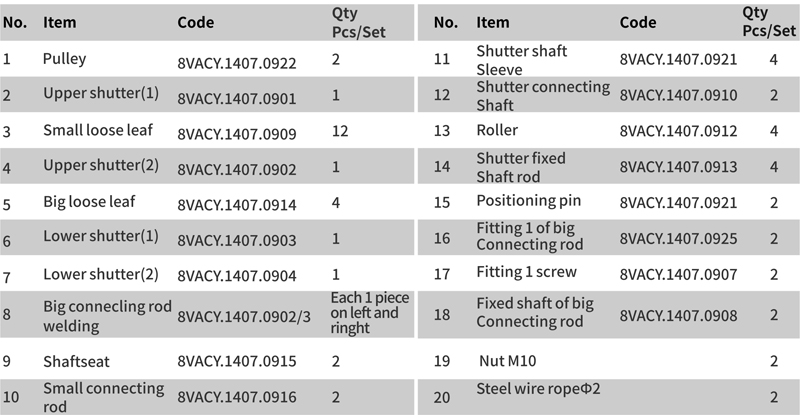

KYN61 Shutter mechanism(steel wire type) assembly sheet
