KYN28A-12(GZS) MV Switchgear Fittings - Shutter Mechanism, 5VACY.233.011(1000mm Mid- Placed Switchgear Cabinet)
EXP00000336
Delivery:
FOB
Quantity:
Specification Code:5VACY.233.011
Specification Description:(1000mm mid-placed switchgear cabinet)
(1000mm mid-placed switchgear cabinet)

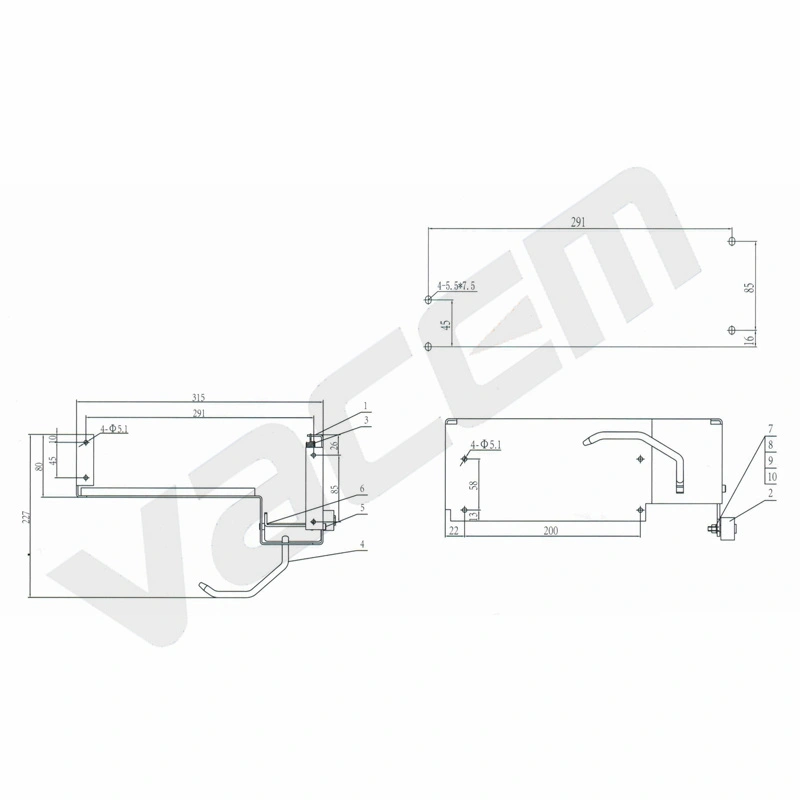

shutter mechanism 5VACY.233.011 installation drawing
Secondary socket interlocking device 5VACY.573.010 hole location sheet
Note1:Oder with conventional shaft length 1428 1450 cabinet depth(without door),other cabinet depth if needed, please specify.
Note2:When order the extra height ,please specify.
