10kV MV Indoor Isolating Switch, VACG19-12(C)

1. General description

  VACG19-12(C) indoor AC M.V. disconnect switch applies to power system of rated voltage below 12kV, AC 50Hz.It is equipped with CS6-1 manual operation mechanism and is used to break and make circuit under no-load. It is made as per IEC62271-102

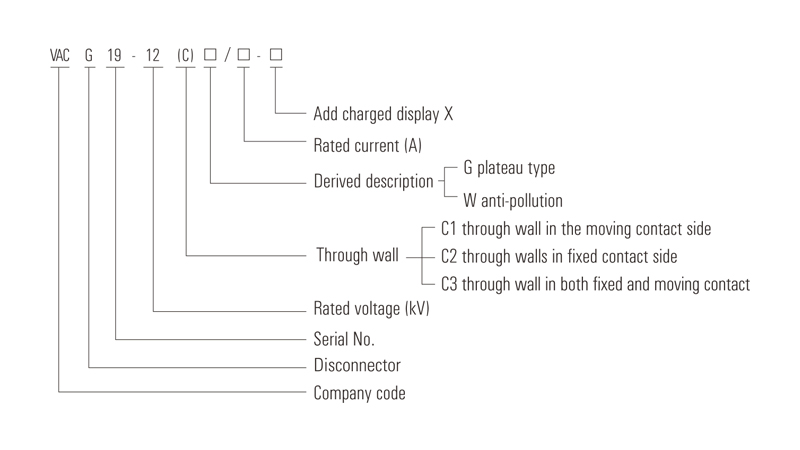

2. Type and meaning

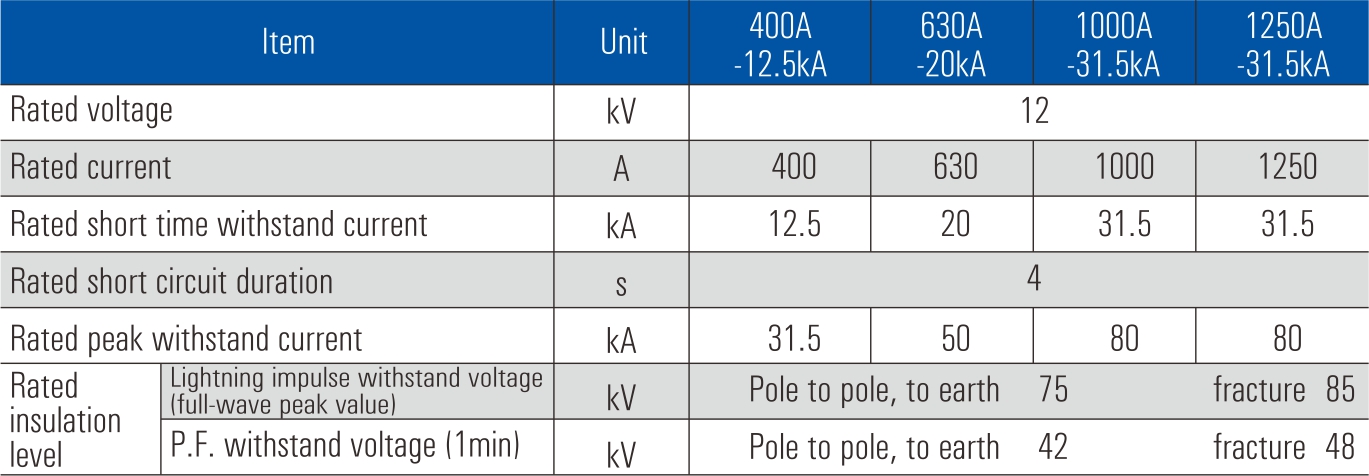

3. Main technical parameter

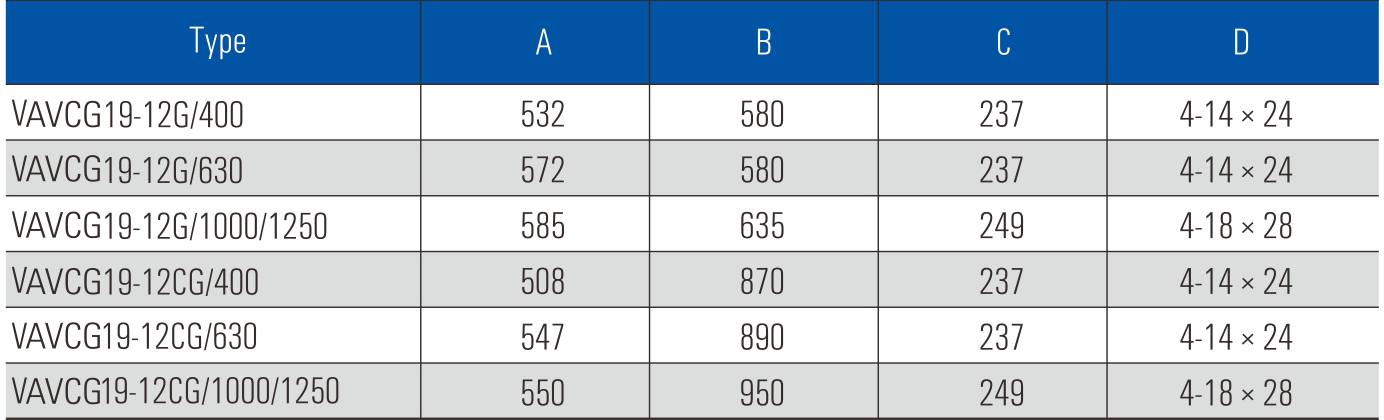

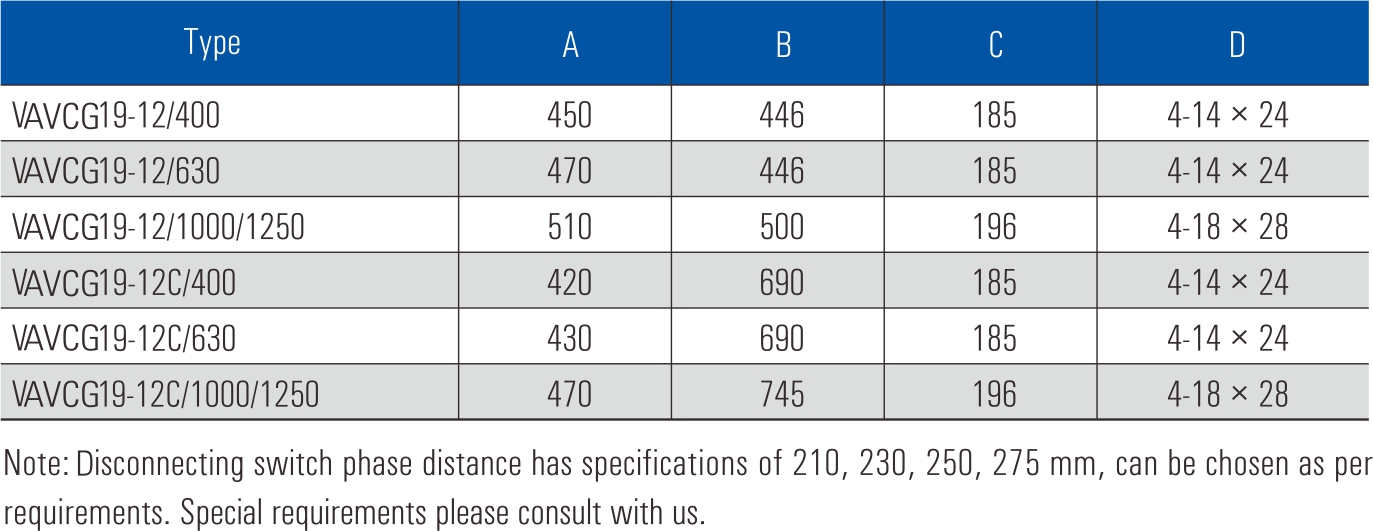

4. Outline and installation dimension
