KYN28A-12(GZS) MV Switchgear Fittings - Guide Rail Interlocking Device, 5VACY.363.011
EXP00000315
Delivery:
FOB
Quantity:
Specification Code:Guide Rail Interlocking Device(5VACY.363.011)
Specification Description:assembly drawing
Guide rail interlocking device(5VACY.363.011)assembly drawing

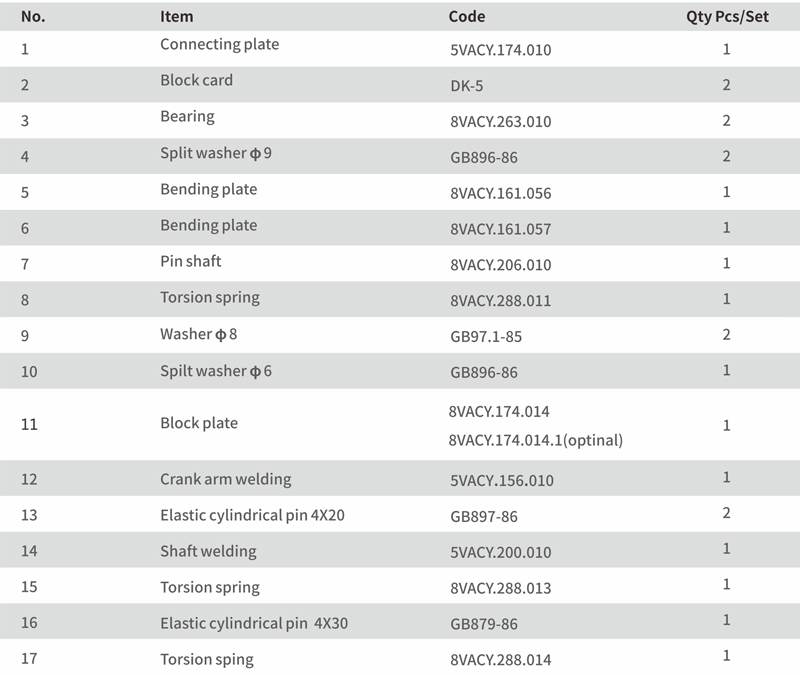

Guide rail interlocking device(5VACY.363.011)assembly sheet
Nore: When handcart is VD4 type and earthing method is earhing clamp,please change item No.11 into 118VACY.174.014.1
