KYN28A-12(GZS) MV Switchgear Fittings - Rear Door Interlock, 8VACY.1508.0100

Specification Code:8VACY.1508.0100

Specification Description:Rear door interlock assembly drawing

Rear door interlock 8VACY.1508.0100 assembly drawing

Introduction:
    The interlock mechanism is improved on the basis of normal rear underside door pressing rear upside door.When close the door, the rear upside door must be closed firstly, then close the underside door, when open the door,the rear underside door must be opened firstly, then open the upside door. This interlock is flexible and reliable with good strength, cabinet with this interlock is more beautiful.

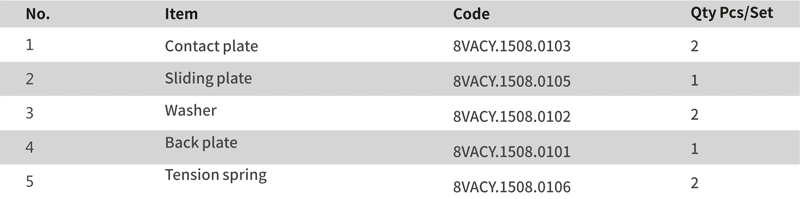

Rear door interlock 8VACY.1508.0100 assembly sheet
