Category
KYN28A-12(GZS) MV Switchgear Fittings - Upside Shutter Mechanism, 5VACY.233.012/5VACY.233.012.1(800mm/1000mm Mid- Placed Switchgear Cabinet)
EXP00000333
Delivery:
FOB
Quantity:
Specification Code:5VACY.233.012/5VACY.233.012.1
Specification Description:(800mm/1000mm mid-placed switchgear cabinet)
(800mm/1000mm mid-placed switchgear cabinet)
Upside shutter mechanism 5VACY.233.012/5VACY.233.012.1 installation drawing
(800mm/1000mm mid-placed switchgear cabinet)

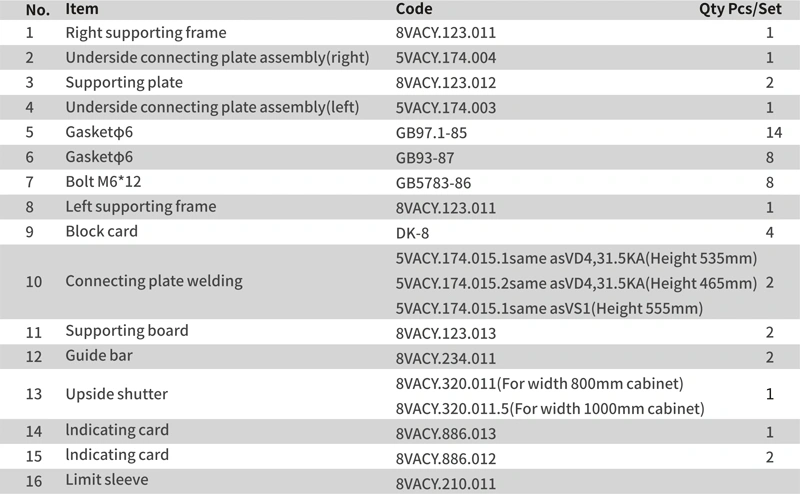

Upside shutter mechanism 5VACY.233.012/5VACY.233.012.1 assembly sheet
