KYN28A-12(GZS) MV Switchgear Fittings - Shutter Mechanism, 5VACY.233.010(800mm Mid- Placed Switchgear Cabinet)
EXP00000330
Delivery:
FOB
Quantity:
Specification Code:5VACY.233.010
Specification Description:(800mm mid-placed switchgear cabinet) installation drawing

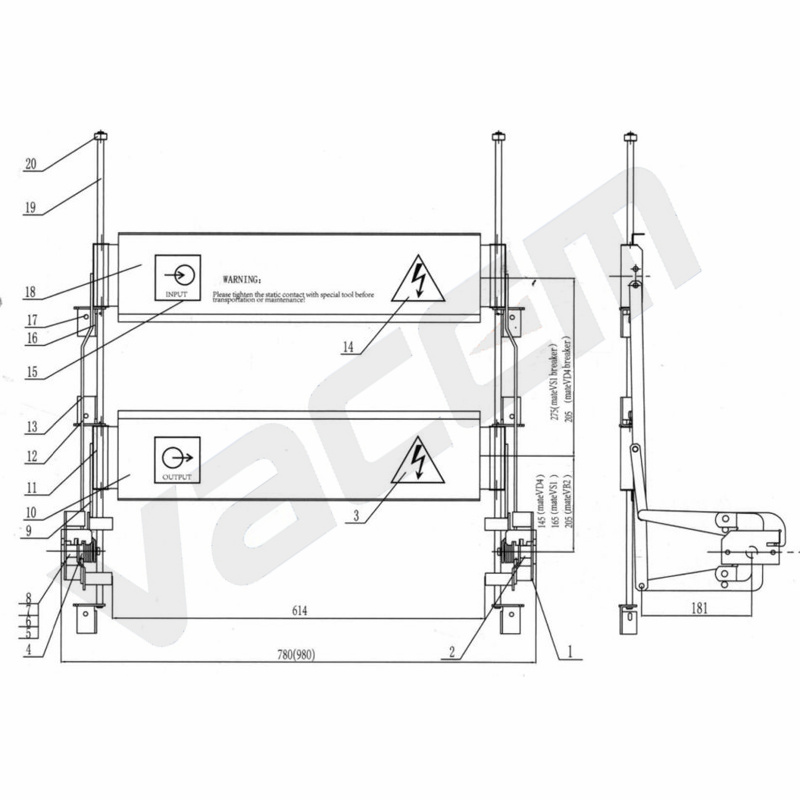

(800mm mid-placed switchgear cabinet)shutter mechanism 5VACY.233.010 installation drawing

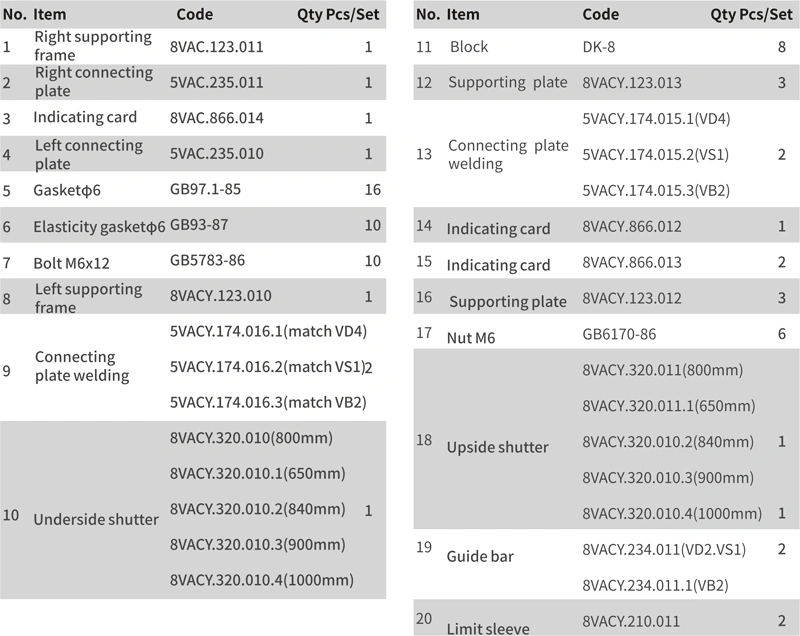

(800mm mid-placed switchgear cabinet)shutter mechanism 5VACY.233.010 assembly sheet
