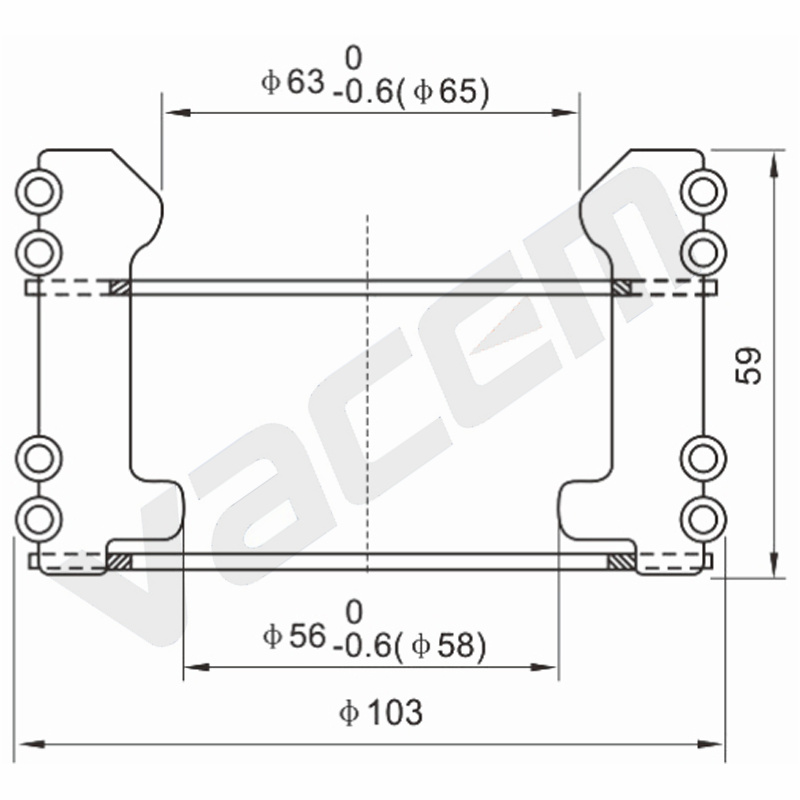

Tulips Contact, Model No. EXD125(GC5-2000A)

Specification Code: EXD125
Specification Description: GC5-2000A Binding type contact
Contact quantity:48 pieces

EXD125 series tulip contact (switchgear copper contact) consist of contact pieces made of red copper coating with silver, its ring spring pressure evenly excellent use of non-magnetic stainless steel with strong anti-abrasion Anti-color treatment, to avoid oxidation of the silver layer off.

The Technical Specifications of this tulip contact define its electrical and mechanical parameters for high-current switchgear applications. The multi-sized tulip contact model EXD125 (GC5-2000A) is designed as a binding type contact with a contact quantity of 48 pieces per assembly, providing excellent current-carrying capacity for 2000A continuous operation. This switchgear copper contact consists of contact pieces made of red copper coated with silver, ensuring superior electrical conductivity and reliable current transmission in medium and high-voltage switchgear systems. The tulip contact features a ring spring pressure mechanism that evenly distributes contact force across all contact fingers, maintaining consistent electrical performance over multiple operating cycles. The multi-sized tulip contact utilizes non-magnetic stainless steel components with strong anti-abrasion and anti-color treatment to avoid oxidation and prevent silver layer detachment. As a critical switchgear copper contact, this tulip contact provides stable electrical engagement between movable and fixed contact assemblies, minimizing contact resistance and heat generation during normal operation. Each multi-sized tulip contact undergoes routine resistance and mechanical endurance testing to verify compliance with stated specifications. Proper installation of this switchgear copper contact ensures reliable current-carrying capacity in demanding switchgear applications.
